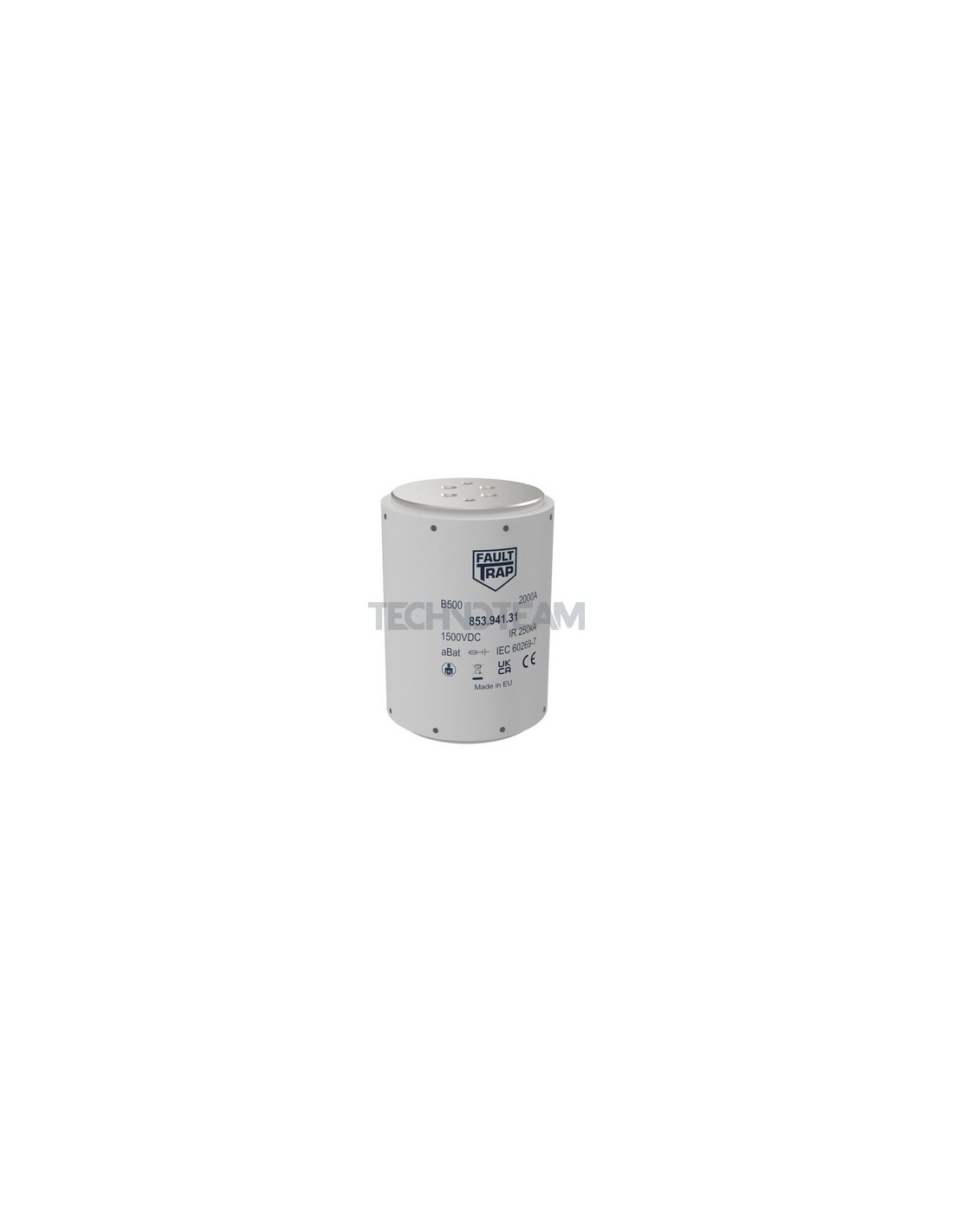

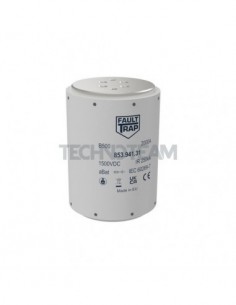

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 750A

    B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 750A

    FAULTRAP
    909.634.43.0.0
    Product available on request

    Product Request:


    B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 750A

    B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 750A

    do not include special characters

    * Required fields



    Class
    aBat
    Rated current In (A)
    750
    Voltage of total I2t test
    1500
    Format
    Screw fixing
    Dimension
    89x144mm
    Pre-arcing I2t value (A2s)
    228000
    Total I2t value (A2s)
    1264000
    Homologations
    IEC
    Power loss (W)
    205
    Rated Voltage Un DC (V)
    1500
    Rated break.capacity I1 DC (A)
    100000
    Time costant L/R (ms)
    3
    Min breaking current I3(A)
    8700
    Catalog name
    B500
