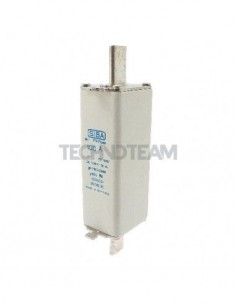

Fuse NH1XL 1500V DC gBat without ind. 125A

    Fuse NH1XL 1500V DC gBat without ind. 125A

    SIBA
    2004136.125.0
    Product available on request

    Product Request:

    Fuse NH1XL 1500V DC gBat without ind. 125A

    Fuse NH1XL 1500V DC gBat without ind. 125A

    do not include special characters

    * Required fields



    Download

    Datasheet
    Rated current In (A)
    125
    Voltage of total I2t test
    1500
    Format
    NH knife contact
    Dimension
    NH1XL
    Pre-arcing I2t value (A2s)
    2950
    Total I2t value (A2s)
    18000
    Homologations
    IEC & UL
    Power loss (W)
    27
    Rated Voltage Un DC (V)
    1500
    Rated break.capacity I1 DC (A)
    100000

    Accessories

    Fuse holder metal/ceramic NH1XL 1500VAC 1200VDC
      Available
      for NH knife fuses

      Fuse holder metal/ceramic NH1XL 1500VAC 1200VDC

      2102801.0.0
      Rated current In (A)
      200
      Rated Voltage Un AC (V)
      1500
      Homologations
      IEC & UL
      Fuses format
      NH knife contact
      Fuses dimension
      NH1XL
      Rated Voltage Un DC (V)
      1000
      Number of phase
      1
      Max power dissipation (W)
      32
      €87.30
      ZMMN - Fuse base NH1XL 1500VDC
        Available
        for NH knife fuses

        ZMMN - Fuse base NH1XL 1500VDC

        446.287.28.0.0
        Rated current In (A)
        250
        Rated Voltage Un AC (V)
        1500
        Homologations
        IEC
        Fuses format
        NH knife contact
        Fuses dimension
        NH1XL
        Rated Voltage Un DC (V)
        1500
        Number of phase
        1
        Distance (mm)
        232
        Max power dissipation (W)
        32
        €97.91
        Fuse base NH1XL 1500VDC 250A
          Available
          for NH knife fuses

          Fuse base NH1XL 1500VDC 250A

          358250.0.0
          Rated current In (A)
          250
          Homologations
          UL
          Fuses format
          NH knife contact
          Fuses dimension
          NH1XL
          Rated Voltage Un DC (V)
          1500
          Number of phase
          1
