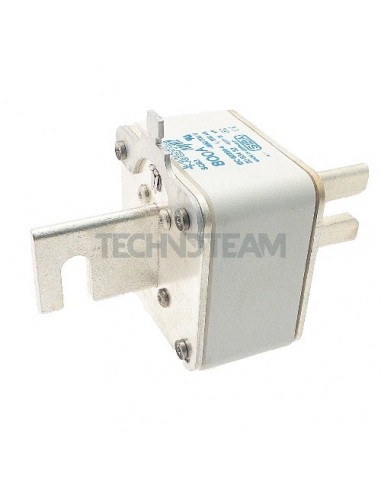

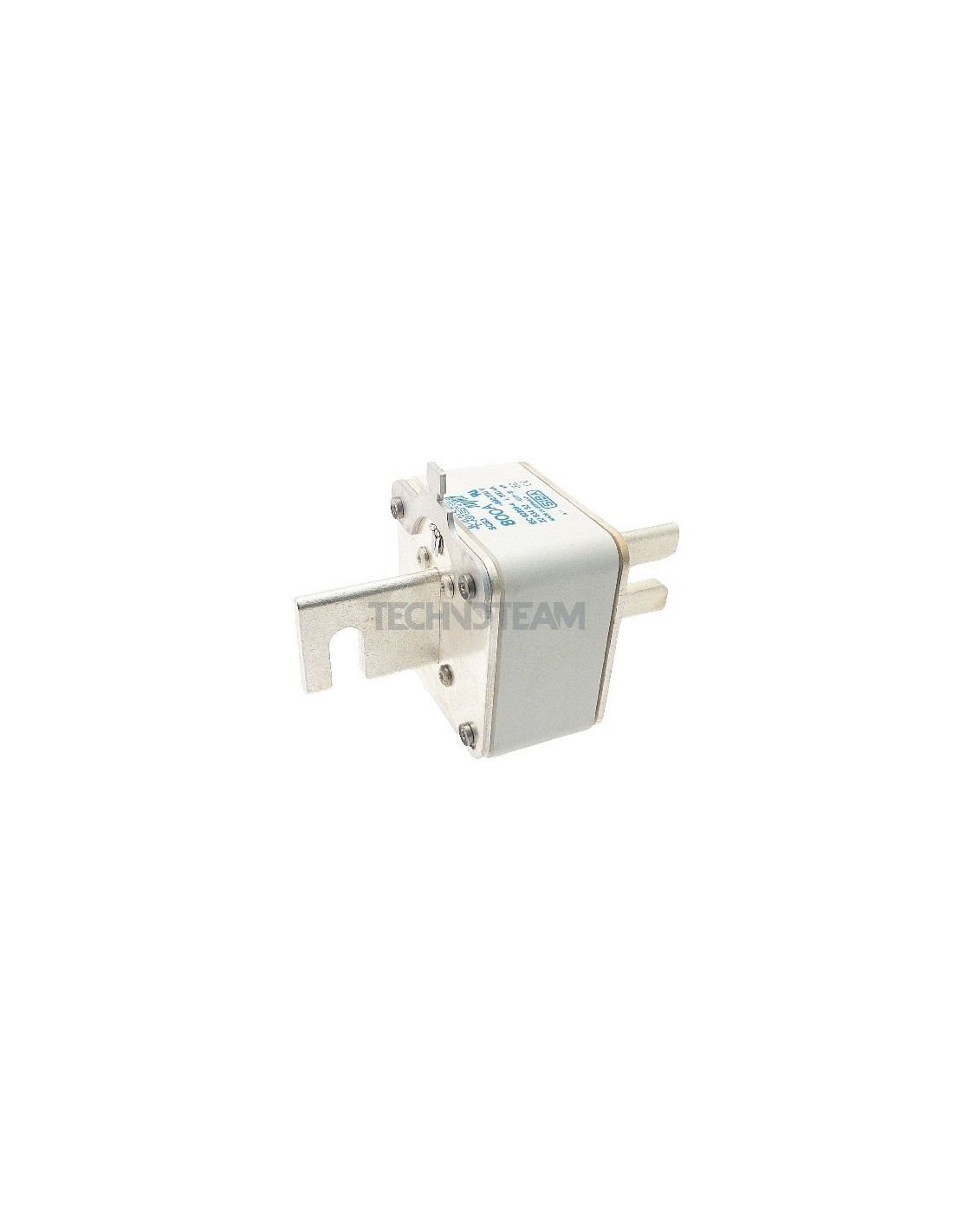

Fuse SQB3 110mm aR 690V top switch adapter 1100A

    Fuse SQB3 110mm aR 690V top switch adapter 1100A

    SIBA
    2063432.1100.0
    €371.40
    VAT excl.

    Product Request:

    Fuse SQB3 110mm aR 690V top switch adapter 1100A

    Fuse SQB3 110mm aR 690V top switch adapter 1100A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 3 pcs

    This product has a minimum quantity of 3 and sold by 3

    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    1100
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    660
    Weight (g)
    1100
    Format
    Screw fixing
    Dimension
    SQB3-110mm
    Pre-arcing I2t value (A2s)
    210000
    Total I2t value (A2s)
    1200000
    Homologations
    IEC & UL
    Power loss (W)
    136

    Alternatives

    Fuse SQB3 110mm aR 690V lateral switch adapter 1100A
      Available
      Ultrarapid fuses aR - gR

      Fuse SQB3 110mm aR 690V lateral switch adapter 1100A

      SIBA SIBA
      2063532.1100.0
      Class
      aR
      Rated current In (A)
      1100
      Rated Voltage Un AC (V)
      690
      Rated break.capacity I1 AC (A)
      200000
      Voltage of total I2t test
      660
      Format
      Screw fixing
      Dimension
      SQB3-110mm
      Pre-arcing I2t value (A2s)
      210000
      Total I2t value (A2s)
      1200000
      Homologations
      IEC & UL
      Power loss (W)
      136
      €330.38
      Fuse SQB3 110mm aR 690V top indicator 1100A
        Available
        Ultrarapid fuses aR - gR

        Fuse SQB3 110mm aR 690V top indicator 1100A

        SIBA SIBA
        2063332.1100.0
        Class
        aR
        Rated current In (A)
        1100
        Rated Voltage Un AC (V)
        690
        Rated break.capacity I1 AC (A)
        200000
        Voltage of total I2t test
        660
        Format
        Screw fixing
        Dimension
        SQB3-110mm
        Pre-arcing I2t value (A2s)
        210000
        Total I2t value (A2s)
        1200000
        Homologations
        IEC & UL
        Power loss (W)
        136
        €323.63
        Fuse SQB3 110mm aR 690V lateral switch adapter 90 1100A
          Available
          Ultrarapid fuses aR - gR

          Fuse SQB3 110mm aR 690V lateral switch adapter 90 1100A

          SIBA SIBA
          2068632.1100.0
          Class
          aR
          Rated current In (A)
          1100
          Rated Voltage Un AC (V)
          690
          Rated break.capacity I1 AC (A)
          200000
          Voltage of total I2t test
          660
          Format
          Screw fixing
          Dimension
          SQB3-110mm
          Pre-arcing I2t value (A2s)
          210000
          Total I2t value (A2s)
          1200000
          Homologations
          IEC & UL
          Power loss (W)
          136

          Product available on request

          Accessories

          Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V
            Available
            for Bolted fuses

            Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V

            2132302.0.0
            Rated current In (A)
            1250
            Rated Voltage Un AC (V)
            1400
            Homologations
            IEC & UL
            Fuses format
            Screw fixing
            Fuses dimension
            SQB1 SQB2 SQB3
            Number of phase
            1
            Distance (mm)
            110
            Max power dissipation (W)
            110
            €194.10
