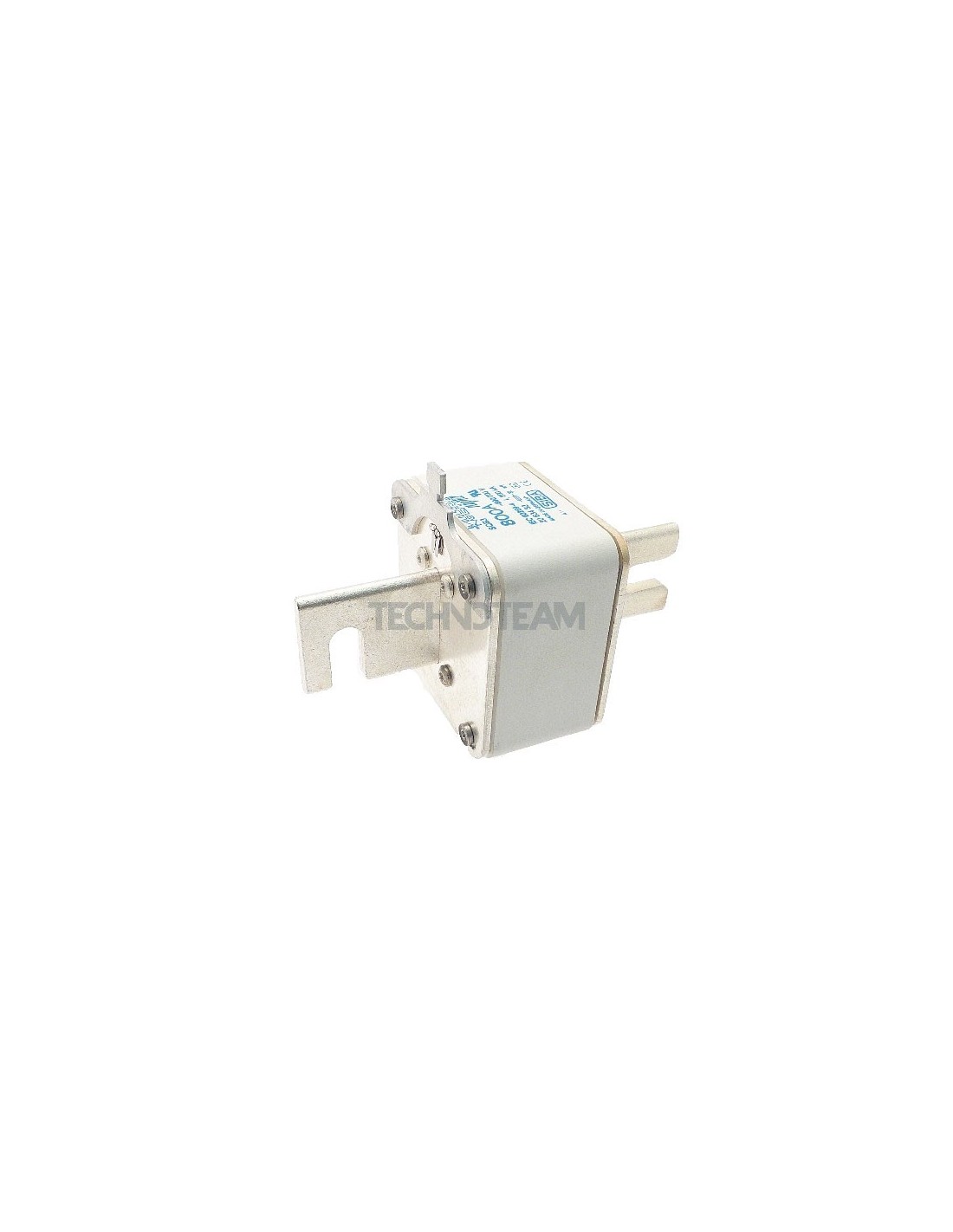

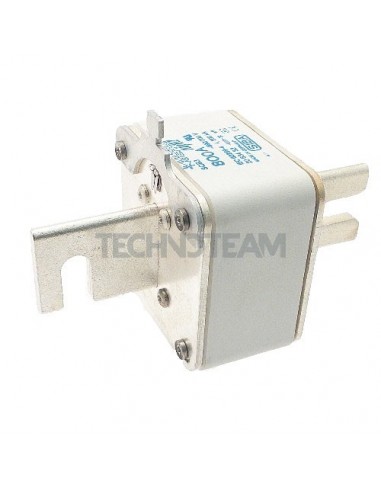

Fuse SQB3 110mm aR 690V top switch adapter 630A

    Fuse SQB3 110mm aR 690V top switch adapter 630A

    SIBA
    2063432.630.0
    €263.93
    VAT excl.

    Product Request:

    Fuse SQB3 110mm aR 690V top switch adapter 630A

    Fuse SQB3 110mm aR 690V top switch adapter 630A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 3 pcs

    This product has a minimum quantity of 3 and sold by 3

    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    630
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    660
    Weight (g)
    840
    Format
    Screw fixing
    Dimension
    SQB3-110mm
    Pre-arcing I2t value (A2s)
    32000
    Total I2t value (A2s)
    190000
    Homologations
    IEC & UL
    Power loss (W)
    108

    Alternatives

    Fuse SQB3 110mm aR 690V lateral switch adapter 630A
      Available
      Ultrarapid fuses aR - gR

      Fuse SQB3 110mm aR 690V lateral switch adapter 630A

      SIBA SIBA
      2063532.630.0
      Class
      aR
      Rated current In (A)
      630
      Rated Voltage Un AC (V)
      690
      Rated break.capacity I1 AC (A)
      200000
      Voltage of total I2t test
      660
      Format
      Screw fixing
      Dimension
      SQB3-110mm
      Pre-arcing I2t value (A2s)
      32000
      Total I2t value (A2s)
      190000
      Homologations
      IEC & UL
      Power loss (W)
      108

      Product available on request

      Fuse SQB3 110mm aR 690V top indicator 630A
        Available
        Ultrarapid fuses aR - gR

        Fuse SQB3 110mm aR 690V top indicator 630A

        SIBA SIBA
        2063332.630.0
        Class
        aR
        Rated current In (A)
        630
        Rated Voltage Un AC (V)
        690
        Rated break.capacity I1 AC (A)
        200000
        Voltage of total I2t test
        660
        Format
        Screw fixing
        Dimension
        SQB3-110mm
        Pre-arcing I2t value (A2s)
        32000
        Total I2t value (A2s)
        190000
        Homologations
        IEC & UL
        Power loss (W)
        108

        Product available on request

        Accessories

        Fuse holder for SQB fuses size1-2-3 110mm 630A 1400V
          Available
          for Bolted fuses

          Fuse holder for SQB fuses size1-2-3 110mm 630A 1400V

          2132301.0.0
          Rated current In (A)
          630
          Rated Voltage Un AC (V)
          1400
          Homologations
          IEC & UL
          Fuses format
          Screw fixing
          Fuses dimension
          SQB1 SQB2 SQB3
          Number of phase
          1
          Distance (mm)
          110
          Max power dissipation (W)
          60
          €137.50
