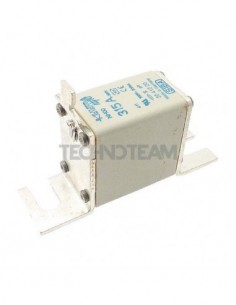

Fuse DIN00 80mm gR 600VDC with indicator and lug 160A

    Fuse DIN00 80mm gR 600VDC with indicator and lug 160A

    SIBA
    2041226.160.0
    Product available on request

    Product Request:


    Fuse DIN00 80mm gR 600VDC with indicator and lug 160A

    Fuse DIN00 80mm gR 600VDC with indicator and lug 160A

    do not include special characters

    * Required fields



    Class
    gR
    Rated current In (A)
    160
    Voltage of total I2t test
    600
    Weight (g)
    240
    Format
    Screw fixing
    Dimension
    00-80mm
    Pre-arcing I2t value (A2s)
    4000
    Total I2t value (A2s)
    24000
    Homologations
    IEC
    Power loss (W)
    21
    Rated Voltage Un DC (V)
    600
    Rated break.capacity I1 DC (A)
    30000
    Time costant L/R (ms)
    2
