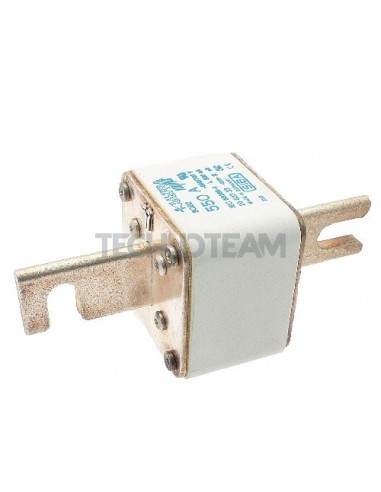

Fuse SQB2 110mm aR 600V top indicator 1250A

    Fuse SQB2 110mm aR 600V top indicator 1250A

    SIBA
    2062332.1250.0
    Product available on request

    Product Request:

    Fuse SQB2 110mm aR 600V top indicator 1250A

    Fuse SQB2 110mm aR 600V top indicator 1250A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 3 pcs

    This product has a minimum quantity of 3 and sold by 3

    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    1250
    Rated Voltage Un AC (V)
    600
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    660
    Weight (g)
    590
    Format
    Screw fixing
    Dimension
    SQB2-110mm
    Pre-arcing I2t value (A2s)
    370000
    Total I2t value (A2s)
    2140000
    Homologations
    IEC & UL
    Power loss (W)
    140

    Alternatives

    Fuse SQB2 110mm aR 600V top switch adapter 1250A
      Available
      Ultrarapid fuses aR - gR

      Fuse SQB2 110mm aR 600V top switch adapter 1250A

      SIBA SIBA
      2062432.1250.0
      Class
      aR
      Rated current In (A)
      1250
      Rated Voltage Un AC (V)
      600
      Rated break.capacity I1 AC (A)
      200000
      Voltage of total I2t test
      660
      Format
      Screw fixing
      Dimension
      SQB2-110mm
      Pre-arcing I2t value (A2s)
      370000
      Total I2t value (A2s)
      2140000
      Homologations
      IEC & UL
      Power loss (W)
      140
      €439.75
      Fuse SQB2 110mm aR 600V lateral switch adapter 1250A
        Available
        Ultrarapid fuses aR - gR

        Fuse SQB2 110mm aR 600V lateral switch adapter 1250A

        SIBA SIBA
        2062532.1250.0
        Class
        aR
        Rated current In (A)
        1250
        Rated Voltage Un AC (V)
        600
        Rated break.capacity I1 AC (A)
        200000
        Voltage of total I2t test
        660
        Format
        Screw fixing
        Dimension
        SQB2-110mm
        Pre-arcing I2t value (A2s)
        370000
        Total I2t value (A2s)
        2140000
        Homologations
        IEC & UL
        Power loss (W)
        140

        Product available on request

        Fuse SQB2 110mm aR 600V top indicator 90 1250A
          Available
          Ultrarapid fuses aR - gR

          Fuse SQB2 110mm aR 600V top indicator 90 1250A

          SIBA SIBA
          2067632.1250.0
          Class
          aR
          Rated current In (A)
          1250
          Rated Voltage Un AC (V)
          600
          Rated break.capacity I1 AC (A)
          200000
          Voltage of total I2t test
          660
          Format
          Screw fixing
          Dimension
          SQB2-110mm
          Pre-arcing I2t value (A2s)
          370000
          Total I2t value (A2s)
          2140000
          Homologations
          IEC
          Power loss (W)
          140

          Product available on request

          Accessories

          Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V
            Available
            for Bolted fuses

            Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V

            2132302.0.0
            Rated current In (A)
            1250
            Rated Voltage Un AC (V)
            1400
            Homologations
            IEC & UL
            Fuses format
            Screw fixing
            Fuses dimension
            SQB1 SQB2 SQB3
            Number of phase
            1
            Distance (mm)
            110
            Max power dissipation (W)
            110
            €194.10
