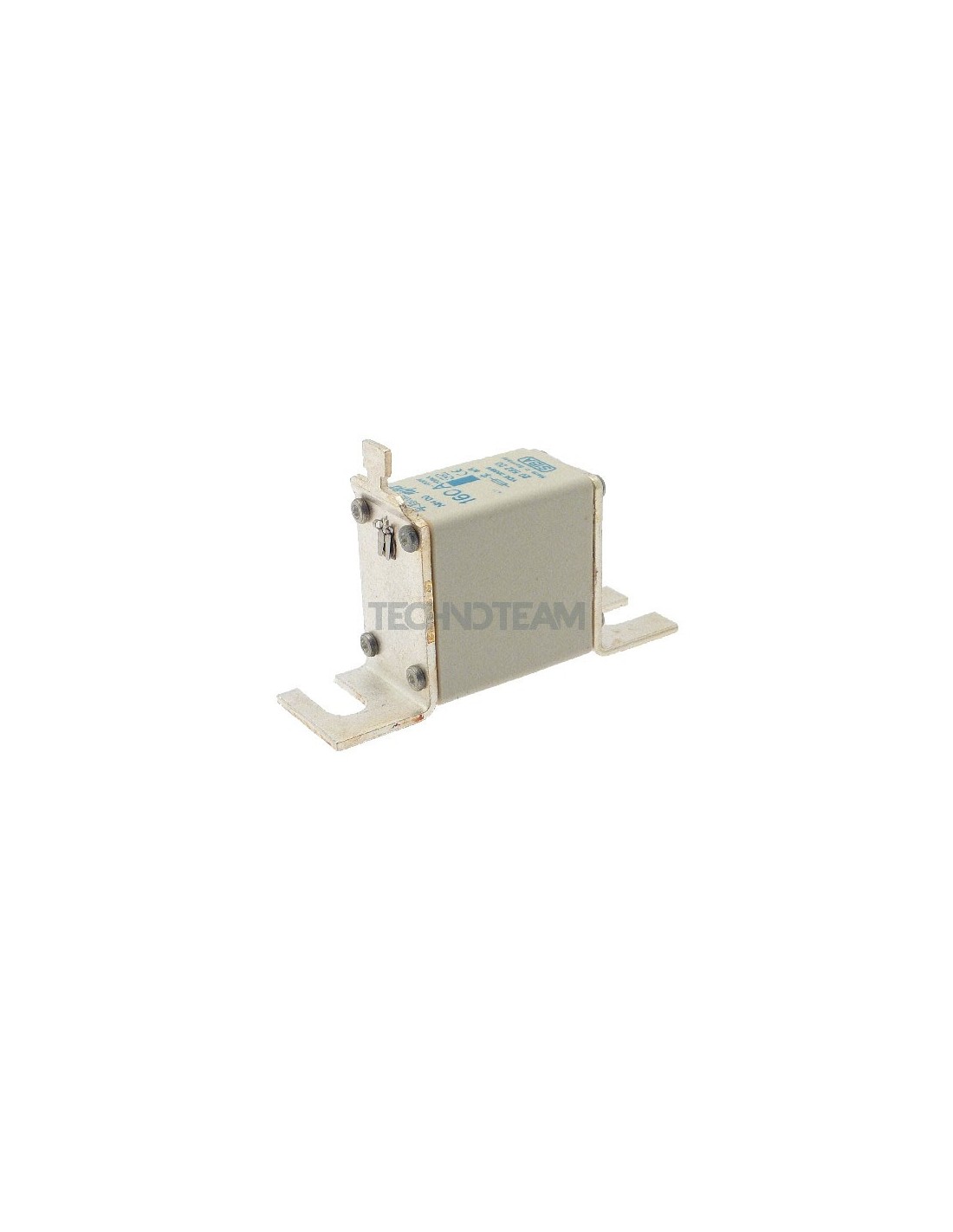

Fuse DIN00 80mm aR 1000VAC with indicator and lug 100A

    Fuse DIN00 80mm aR 1000VAC with indicator and lug 100A

    SIBA
    2056220.100.0
    €63.30
    VAT excl.

    Product Request:

    Fuse DIN00 80mm aR 1000VAC with indicator and lug 100A

    Fuse DIN00 80mm aR 1000VAC with indicator and lug 100A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 3 pcs

    This product has a minimum quantity of 3 and sold by 3

    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    100
    Rated Voltage Un AC (V)
    1000
    Rated break.capacity I1 AC (A)
    100000
    Voltage of total I2t test
    1000
    Weight (g)
    190
    Format
    Screw fixing
    Dimension
    00-80mm
    Pre-arcing I2t value (A2s)
    740
    Total I2t value (A2s)
    5000
    Homologations
    IEC
    Power loss (W)
    28

    Alternatives

    Fuse DIN00 80mm aR 1000VAC with indicator,w/o lug 100A
      Available
      Ultrarapid fuses aR - gR

      Fuse DIN00 80mm aR 1000VAC with indicator,w/o lug 100A

      SIBA SIBA
      2056020.100.0
      Class
      aR
      Rated current In (A)
      100
      Rated Voltage Un AC (V)
      1000
      Rated break.capacity I1 AC (A)
      100000
      Voltage of total I2t test
      1000
      Format
      Screw fixing
      Dimension
      00-80mm
      Pre-arcing I2t value (A2s)
      740
      Total I2t value (A2s)
      5000
      Power loss (W)
      28
      Rated break.capacity I1 DC (A)
      30000
      Time costant L/R (ms)
      4

      Product available on request

      Accessories

      Fuse holder for DIN000-00 80mm 1000V 400A
        Available
        for Bolted fuses

        Fuse holder for DIN000-00 80mm 1000V 400A

        2118901.0.0
        Rated current In (A)
        400
        Rated Voltage Un AC (V)
        1000
        Homologations
        IEC & UL
        Fuses format
        Screw fixing
        Fuses dimension
        80mm
        Number of phase
        1
        Distance (mm)
        80
        Max power dissipation (W)
        34
