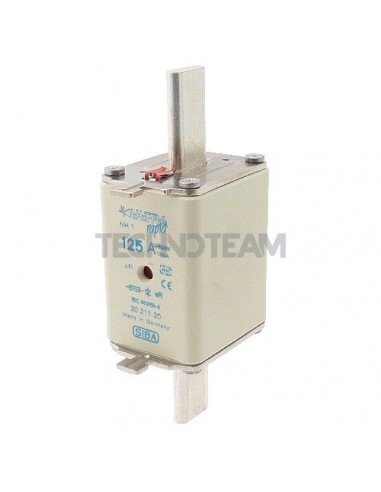

Fuse NH1 aR 690V/500VDC top indicator low I2t 125A

    Fuse NH1 aR 690V/500VDC top indicator low I2t 125A

    SIBA
    2021132.125.0
    €106.93
    VAT excl.

    Product Request:

    Fuse NH1 aR 690V/500VDC top indicator low I2t 125A

    Fuse NH1 aR 690V/500VDC top indicator low I2t 125A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 3 pcs

    This product has a minimum quantity of 3 and sold by 3

    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    125
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    120000
    Voltage of total I2t test
    690
    Weight (g)
    483
    Format
    NH knife contact
    Dimension
    NH1
    Pre-arcing I2t value (A2s)
    570
    Total I2t value (A2s)
    3900
    Homologations
    IEC & UL
    Power loss (W)
    11
    Rated Voltage Un DC (V)
    500
    Rated break.capacity I1 DC (A)
    30000
    Time costant L/R (ms)
    10

    Accessories

    Fuse holder NH1 690V 3poles
      Available
      for NH knife fuses

      Fuse holder NH1 690V 3poles

      2100303.0.0
      Rated current In (A)
      250
      Rated Voltage Un AC (V)
      690
      Homologations
      IEC
      Fuses format
      NH knife contact
      Fuses dimension
      NH1
      Number of phase
      3
      Max power dissipation (W)
      32
      €112.72
      Fuse holder metal/ceramic NH1 690V 250A 1pole
        Available
        for NH knife fuses

        Fuse holder metal/ceramic NH1 690V 250A 1pole

        2100301.0.0
        Rated current In (A)
        250
        Rated Voltage Un AC (V)
        690
        Homologations
        IEC
        Fuses format
        NH knife contact
        Fuses dimension
        NH1
        Number of phase
        1
        Max power dissipation (W)
        32
        €25.05
        ZJLR - Fuse base NH1 1500VDC 1P
          Available
          for NH knife fuses

          ZJLR - Fuse base NH1 1500VDC 1P

          447.520.55.0.0
          Rated current In (A)
          250
          Rated Voltage Un AC (V)
          1000
          Homologations
          IEC
          Fuses format
          NH knife contact
          Fuses dimension
          NH1
          Rated Voltage Un DC (V)
          1500
          Number of phase
          1
          Distance (mm)
          175
          Max power dissipation (W)
          32
          €28.39
          Swich disconn. NH1 3P BS 690V conn. screw
            Available
            Horizontal switch disconnectors for NH fuses

            Swich disconn. NH1 3P BS 690V conn. screw

            335095.0.0
            Rated current In (A)
            250
            Rated Voltage Un AC (V)
            690
            Homologations
            IEC
            Fuses format
            NH knife contact
            Fuses dimension
            NH1
            Number of phase
            3
            Max power dissipation (W)
            32
