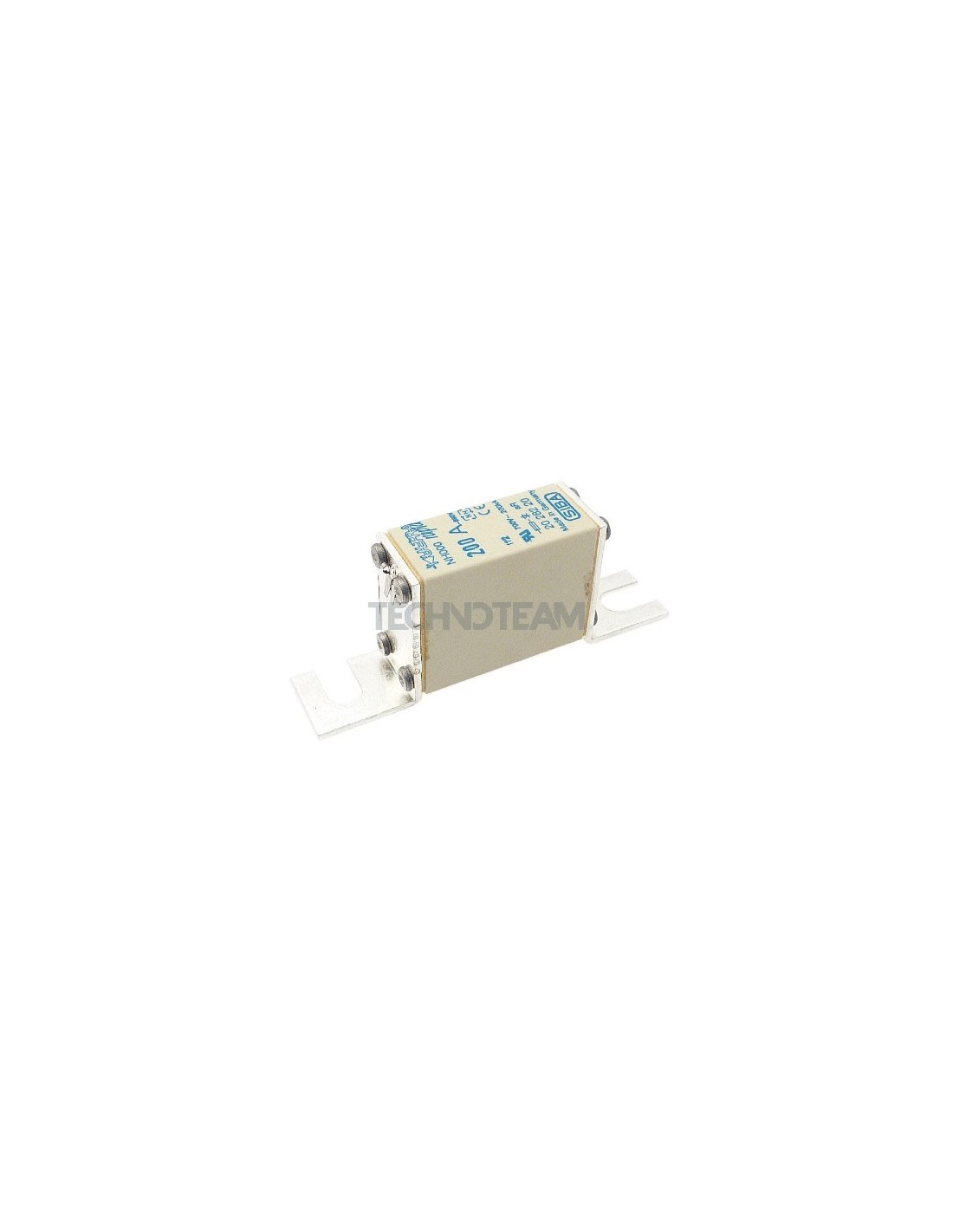

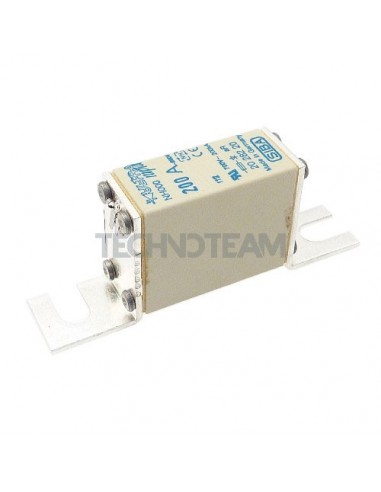

Fuse DIN000 80mm aR 720VDC 50A

    Fuse DIN000 80mm aR 720VDC 50A

    SIBA
    2029521.50.0
    Product available on request

    Product Request:


    Fuse DIN000 80mm aR 720VDC 50A

    Fuse DIN000 80mm aR 720VDC 50A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 6 pcs

    This product has a minimum quantity of 6 and sold by 6

    Download

    Datasheet
    Class
    aR
    Rated current In (A)
    50
    Voltage of total I2t test
    720
    Weight (g)
    130
    Format
    Screw fixing
    Dimension
    000-80mm
    Pre-arcing I2t value (A2s)
    104
    Total I2t value (A2s)
    530
    Homologations
    UL
    Power loss (W)
    17
    Rated Voltage Un DC (V)
    720
    Rated break.capacity I1 DC (A)
    50000
    Time costant L/R (ms)
    1
