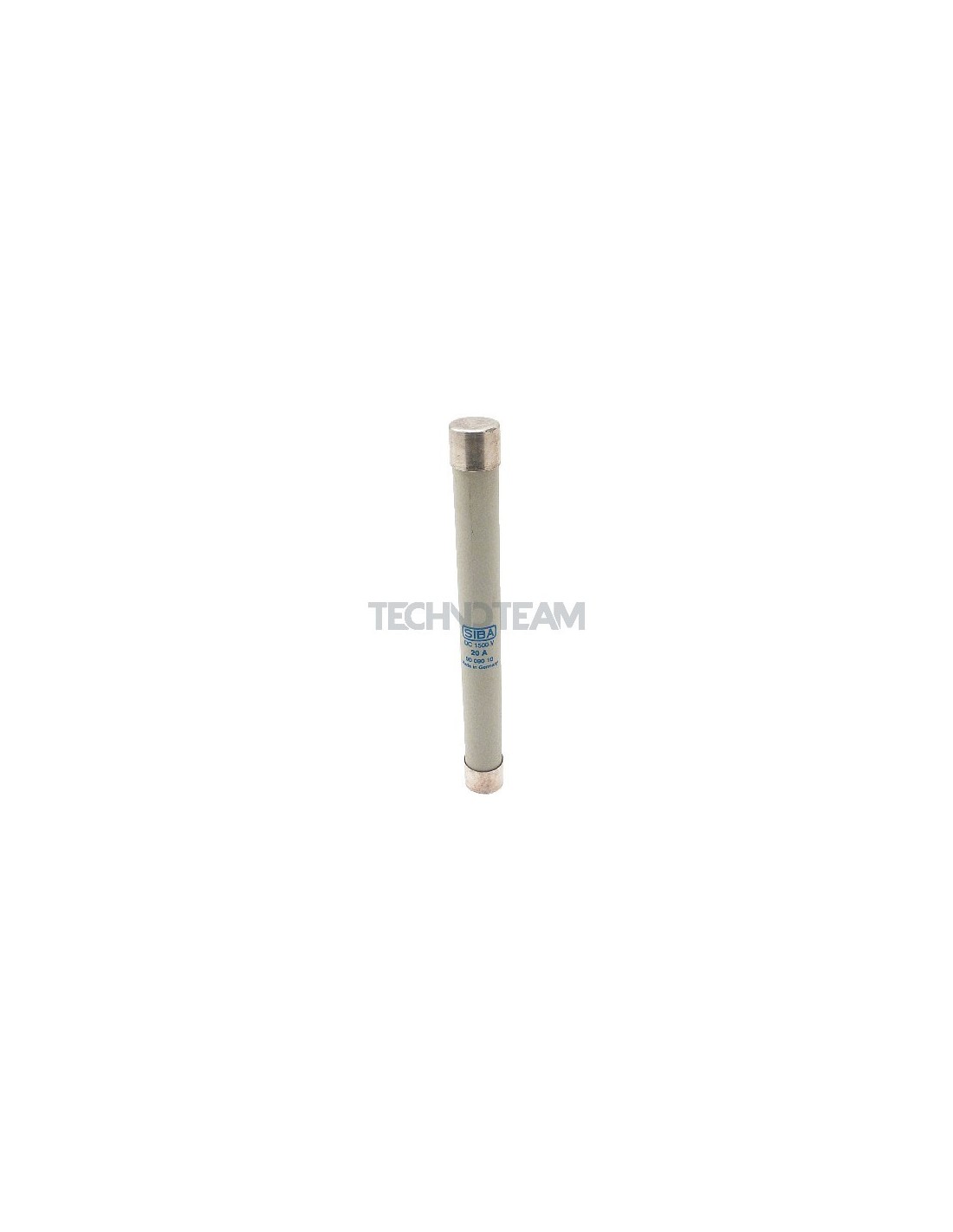

Fuse 20x190 gR 1500VDC 12A

    Fuse 20x190 gR 1500VDC 12A

    SIBA
    9009010.12.0
    Product available on request

    Product Request:


    Fuse 20x190 gR 1500VDC 12A

    Fuse 20x190 gR 1500VDC 12A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 6 pcs

    This product has a minimum quantity of 6 and sold by 6

    Download

    Catalog Datasheet
    Class
    gR
    Rated current In (A)
    12
    Voltage of total I2t test
    1500
    Weight (g)
    2280
    Format
    Cylindrical
    Dimension
    20x190mm
    Pre-arcing I2t value (A2s)
    90
    Total I2t value (A2s)
    550
    Power loss (W)
    6,2
    Rated Voltage Un DC (V)
    1500
    Rated break.capacity I1 DC (A)
    60000
