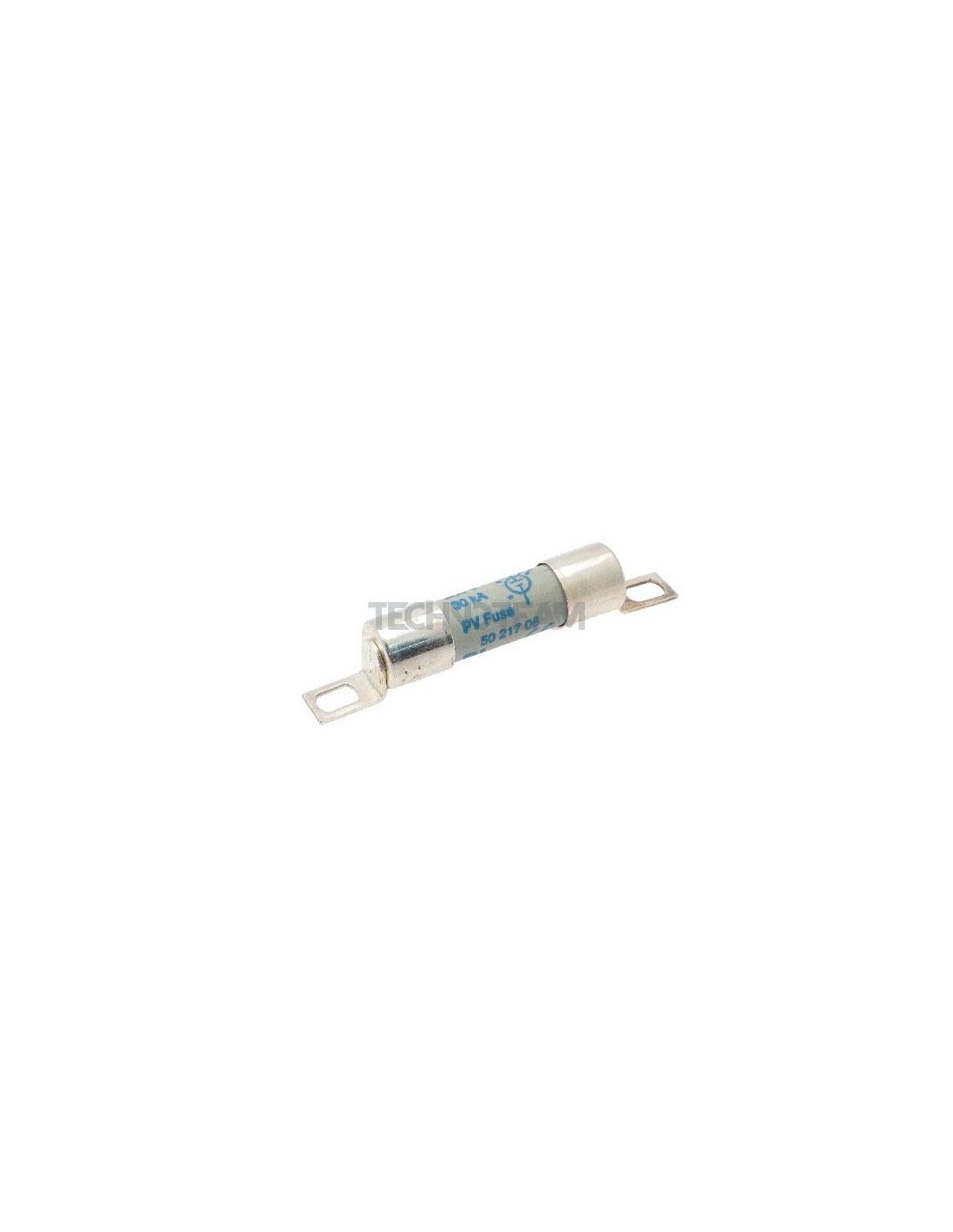

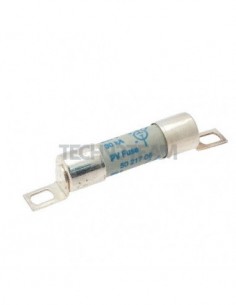

Fuse gR 10x38 690V with terminals 1A

    Fuse gR 10x38 690V with terminals 1A

    SIBA
    5018006.1.0
    Product available on request

    Product Request:

    Fuse gR 10x38 690V with terminals 1A

    Fuse gR 10x38 690V with terminals 1A

    do not include special characters

    * Required fields



    Download

    Catalog Datasheet
    Class
    gR
    Rated current In (A)
    1
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    660
    Weight (g)
    10
    Format
    Screw fixing
    Dimension
    10x38mm
    Pre-arcing I2t value (A2s)
    0,13
    Total I2t value (A2s)
    1,6
    Homologations
    IEC & UL
    Power loss (W)
    1

    Accessories

    ZVJM - Fuse holder 10x38 690VAC-1000VDC 4P
      Available
      for Cylindrical fuses

      ZVJM - Fuse holder 10x38 690VAC-1000VDC 4P

      188.120.82.0.0
      Rated current In (A)
      32
      Rated Voltage Un AC (V)
      690
      Homologations
      IEC
      Power loss (W)
      4
      Fuses format
      Cylindrical
      Fuses dimension
      10x38mm
      Rated Voltage Un DC (V)
      1000
      Number of phase
      4

      Product available on request

      ZVJM - Fuse holder 10x38 690VAC-1000VDC 3P with ind
        Available
        for Cylindrical fuses

        ZVJM - Fuse holder 10x38 690VAC-1000VDC 3P with ind

        346.127.98.0.0
        Rated current In (A)
        32
        Rated Voltage Un AC (V)
        690
        Homologations
        IEC
        Power loss (W)
        4
        Fuses format
        Cylindrical
        Fuses dimension
        10x38mm
        Rated Voltage Un DC (V)
        1000
        Number of phase
        3
        €26.74
        ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P with ind
          Available
          for Cylindrical fuses

          ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P with ind

          421.781.29.0.0
          Rated current In (A)
          32
          Rated Voltage Un AC (V)
          690
          Homologations
          IEC
          Fuses format
          Cylindrical
          Fuses dimension
          10x38mm
          Rated Voltage Un DC (V)
          1000
          Number of phase
          1
          Max power dissipation (W)
          4,3
          €9.15
          ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P
            Available
            for Cylindrical fuses

            ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P

            793.159.36.0.0
            Rated current In (A)
            32
            Rated Voltage Un AC (V)
            690
            Homologations
            IEC
            Fuses format
            Cylindrical
            Fuses dimension
            10x38mm
            Rated Voltage Un DC (V)
            1000
            Number of phase
            2
            Max power dissipation (W)
            4,3
            €7.37
            ZVJM - Fuse holder 10x38 690VAC-1000VDC 3P
              Available
              for Cylindrical fuses

              ZVJM - Fuse holder 10x38 690VAC-1000VDC 3P

              609.223.86.0.0
              Rated current In (A)
              32
              Rated Voltage Un AC (V)
              690
              Homologations
              IEC
              Power loss (W)
              4
              Fuses format
              Cylindrical
              Fuses dimension
              10x38mm
              Rated Voltage Un DC (V)
              1000
              Number of phase
              3
              €11.27
              ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P
                Available
                for Cylindrical fuses

                ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P

                832.456.76.0.0
                Rated current In (A)
                32
                Rated Voltage Un AC (V)
                690
                Homologations
                IEC
                Fuses format
                Cylindrical
                Fuses dimension
                10x38mm
                Rated Voltage Un DC (V)
                1000
                Number of phase
                1
                Max power dissipation (W)
                4
                €3.04
                ZVJM - Fuse holder 10x38 690VAC-1000VDC 4P with ind
                  Available
                  for Cylindrical fuses

                  ZVJM - Fuse holder 10x38 690VAC-1000VDC 4P with ind

                  691.187.44.0.0
                  Rated current In (A)
                  32
                  Rated Voltage Un AC (V)
                  690
                  Homologations
                  IEC
                  Power loss (W)
                  4
                  Fuses format
                  Cylindrical
                  Fuses dimension
                  10x38mm
                  Rated Voltage Un DC (V)
                  1000
                  Number of phase
                  4

                  Product available on request

                  ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P with ind
                    Available
                    for Cylindrical fuses

                    ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P with ind

                    543.991.81.0.0
                    Rated current In (A)
                    32
                    Rated Voltage Un AC (V)
                    690
                    Homologations
                    IEC
                    Fuses format
                    Cylindrical
                    Fuses dimension
                    10x38mm
                    Rated Voltage Un DC (V)
                    1000
                    Number of phase
                    2
                    Max power dissipation (W)
                    4,3

                    Product available on request
