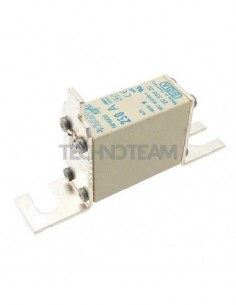

Fuse DIN000 80mm aR 690V UL with indicator and lug 80A

    Fuse DIN000 80mm aR 690V UL with indicator and lug 80A

    SIBA
    2055820.80.0
    €48.69
    VAT excl.

    Product Request:

    Fuse DIN000 80mm aR 690V UL with indicator and lug 80A

    Fuse DIN000 80mm aR 690V UL with indicator and lug 80A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 6 pcs

    This product has a minimum quantity of 6 and sold by 6

    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    80
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    660
    Weight (g)
    140
    Format
    Screw fixing
    Dimension
    000-80mm
    Pre-arcing I2t value (A2s)
    470
    Total I2t value (A2s)
    2600
    Homologations
    IEC & UL
    Power loss (W)
    18

    Alternatives

    Fuse DIN000 80mm gR 660V with indicator,without lug 80A
      Available
      Ultrarapid fuses aR - gR

      Fuse DIN000 80mm gR 660V with indicator,without lug 80A

      SIBA SIBA
      2028204.80.0
      Class
      gR
      Rated current In (A)
      80
      Rated Voltage Un AC (V)
      660
      Rated break.capacity I1 AC (A)
      100000
      Voltage of total I2t test
      660
      Format
      Screw fixing
      Dimension
      000-80mm
      Pre-arcing I2t value (A2s)
      512
      Total I2t value (A2s)
      3500
      Homologations
      IEC
      Power loss (W)
      18
      €44.73
      Fuse DIN000 80mm aR 690V UL with indicator, w/o lug 80A
        Available
        Ultrarapid fuses aR - gR

        Fuse DIN000 80mm aR 690V UL with indicator, w/o lug 80A

        SIBA SIBA
        2028220.80.0
        Class
        aR
        Rated current In (A)
        80
        Rated Voltage Un AC (V)
        690
        Rated break.capacity I1 AC (A)
        200000
        Voltage of total I2t test
        660
        Format
        Screw fixing
        Dimension
        000-80mm
        Pre-arcing I2t value (A2s)
        470
        Total I2t value (A2s)
        2600
        Homologations
        IEC & UL
        Power loss (W)
        18

        Product available on request

        Fuse DIN000 80mm gR 660V with indicator and lug 80A
          Available
          Ultrarapid fuses aR - gR

          Fuse DIN000 80mm gR 660V with indicator and lug 80A

          SIBA SIBA
          2055804.80.0
          Class
          gR
          Rated current In (A)
          80
          Rated Voltage Un AC (V)
          660
          Rated break.capacity I1 AC (A)
          100000
          Voltage of total I2t test
          660
          Format
          Screw fixing
          Dimension
          000-80mm
          Pre-arcing I2t value (A2s)
          512
          Total I2t value (A2s)
          3500
          Homologations
          IEC
          Power loss (W)
          18
          €39.06

          Accessories

          Fuse holder for DIN000-00 80mm 1000V 400A
            Available
            for Bolted fuses

            Fuse holder for DIN000-00 80mm 1000V 400A

            2118901.0.0
            Rated current In (A)
            400
            Rated Voltage Un AC (V)
            1000
            Homologations
            IEC & UL
            Fuses format
            Screw fixing
            Fuses dimension
            80mm
            Number of phase
            1
            Distance (mm)
            80
            Max power dissipation (W)
            34
            €24.35
