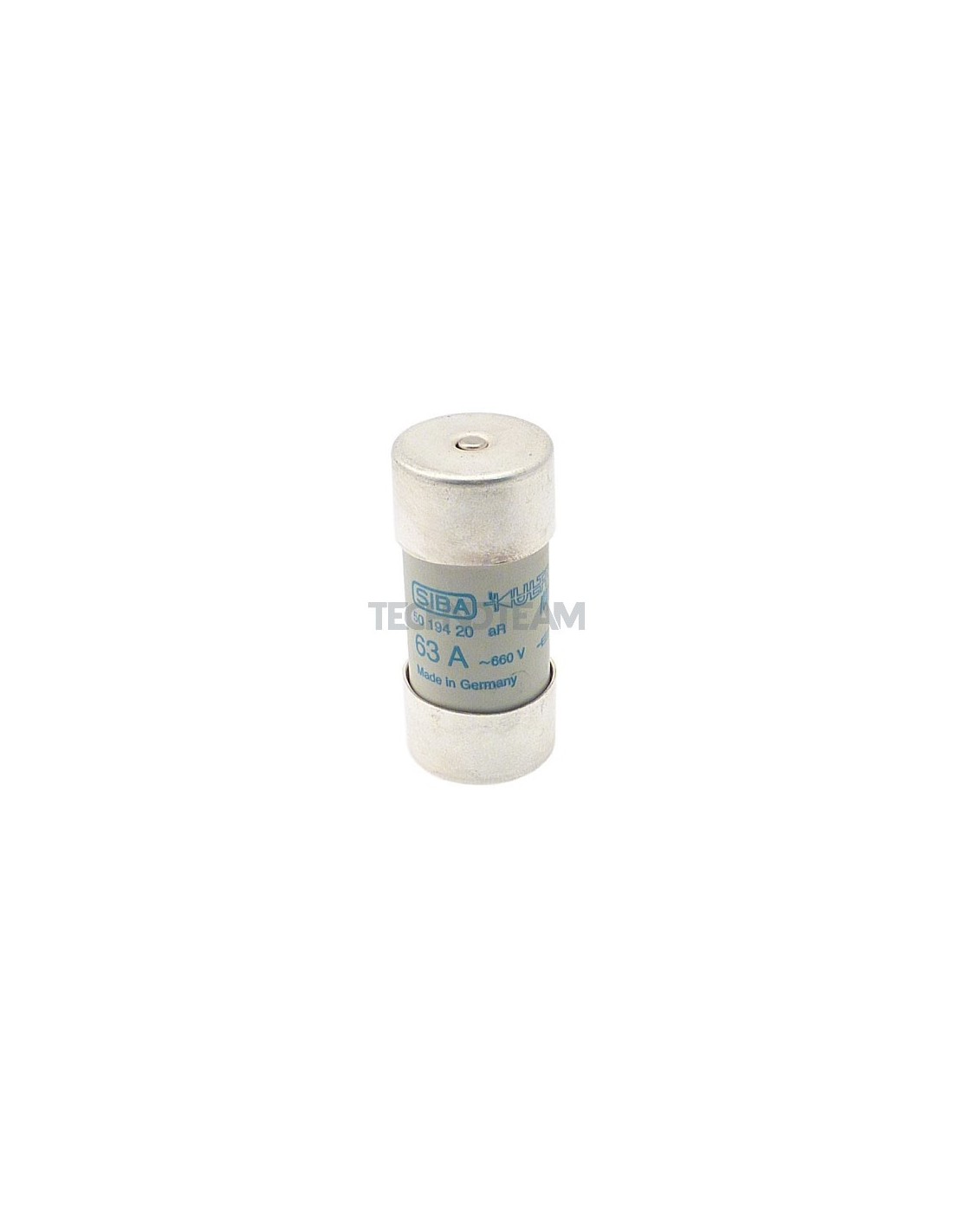

Fuse 27x60 aR 660VAC with striker 63A

    Fuse 27x60 aR 660VAC with striker 63A

    SIBA
    5019420.63.0
    €77.87
    VAT excl.

    Product Request:

    Fuse 27x60 aR 660VAC with striker 63A

    Fuse 27x60 aR 660VAC with striker 63A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 10 pcs

    This product has a minimum quantity of 10 and sold by 10

    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    63
    Rated Voltage Un AC (V)
    660
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    660
    Weight (g)
    100
    Format
    Cylindrical
    Dimension
    27x60mm
    Pre-arcing I2t value (A2s)
    330
    Total I2t value (A2s)
    2000
    Homologations
    IEC
    Power loss (W)
    16

    Alternatives

    Fuse 27x60 aR 660VAC 63A
      Available
      Ultrarapid fuses aR - gR

      Fuse 27x60 aR 660VAC 63A

      SIBA SIBA
      5019320.63.0
      Class
      aR
      Rated current In (A)
      63
      Rated Voltage Un AC (V)
      660
      Rated break.capacity I1 AC (A)
      200000
      Voltage of total I2t test
      660
      Format
      Cylindrical
      Dimension
      27x60mm
      Pre-arcing I2t value (A2s)
      330
      Total I2t value (A2s)
      2000
      Homologations
      IEC
      Power loss (W)
      16
      €54.04
      Fuse 27x60 gR 660VDC 63A
        Available
        Ultrarapid fuses aR - gR

        Fuse 27x60 gR 660VDC 63A

        SIBA SIBA
        5019006.63.0
        Class
        gR
        Rated current In (A)
        63
        Rated Voltage Un AC (V)
        660
        Voltage of total I2t test
        660
        Format
        Cylindrical
        Dimension
        27x60mm
        Pre-arcing I2t value (A2s)
        1200
        Total I2t value (A2s)
        6000
        Homologations
        IEC & UL
        Power loss (W)
        8,9
        Rated Voltage Un DC (V)
        660
        Rated break.capacity I1 DC (A)
        30000
        Time costant L/R (ms)
        10

        Product available on request

        Fuse 27x60 gR 660VDC with striker 63A
          Available
          Ultrarapid fuses aR - gR

          Fuse 27x60 gR 660VDC with striker 63A

          SIBA SIBA
          5019106.63.0
          Class
          gR
          Rated current In (A)
          63
          Rated Voltage Un AC (V)
          660
          Voltage of total I2t test
          660
          Format
          Cylindrical
          Dimension
          27x60mm
          Pre-arcing I2t value (A2s)
          1200
          Total I2t value (A2s)
          6000
          Homologations
          IEC & UL
          Power loss (W)
          8,9
          Rated Voltage Un DC (V)
          660
          Rated break.capacity I1 DC (A)
          30000
          Time costant L/R (ms)
          10

          Product available on request

          Accessories

          Clip 27mm
            Available
            for Cylindrical fuses

            Clip 27mm

            6100401.3.0
            Homologations
            IEC & UL
            Fuses format
            Cylindrical
            Inside diameter (mm)
            27

            Product available on request

            Plate for clip diameter 22/27mm
              Available
              for Cylindrical fuses

              Plate for clip diameter 22/27mm

              6300201.0.0
              Homologations
              IEC & UL
              Fuses format
              Cylindrical
              Inside diameter (mm)
              22 27

              Product available on request
