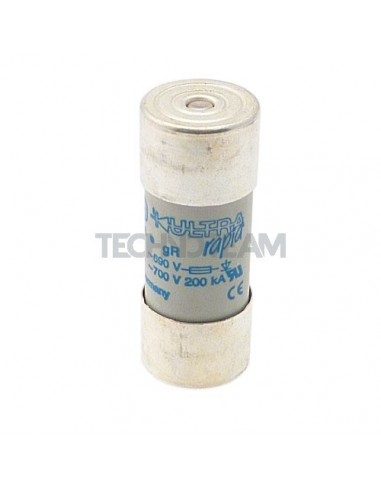

Fuse 22x58 gR 690V UL with striker 100A

    Fuse 22x58 gR 690V UL with striker 100A

    SIBA
    5014206.100.0
    €21.46
    VAT excl.

    Product Request:

    Fuse 22x58 gR 690V UL with striker 100A

    Fuse 22x58 gR 690V UL with striker 100A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 10 pcs

    This product has a minimum quantity of 10 and sold by 10

    Download

    Catalog Datasheet
    Class
    gR
    Rated current In (A)
    100
    Rated Voltage Un AC (V)
    700
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    660
    Weight (g)
    58
    Format
    Cylindrical
    Dimension
    22x58mm
    Pre-arcing I2t value (A2s)
    2050
    Total I2t value (A2s)
    8900
    Homologations
    IEC & UL
    Power loss (W)
    19
