Available
High Voltage fuses

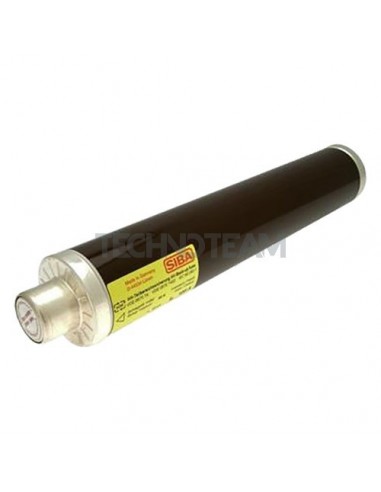

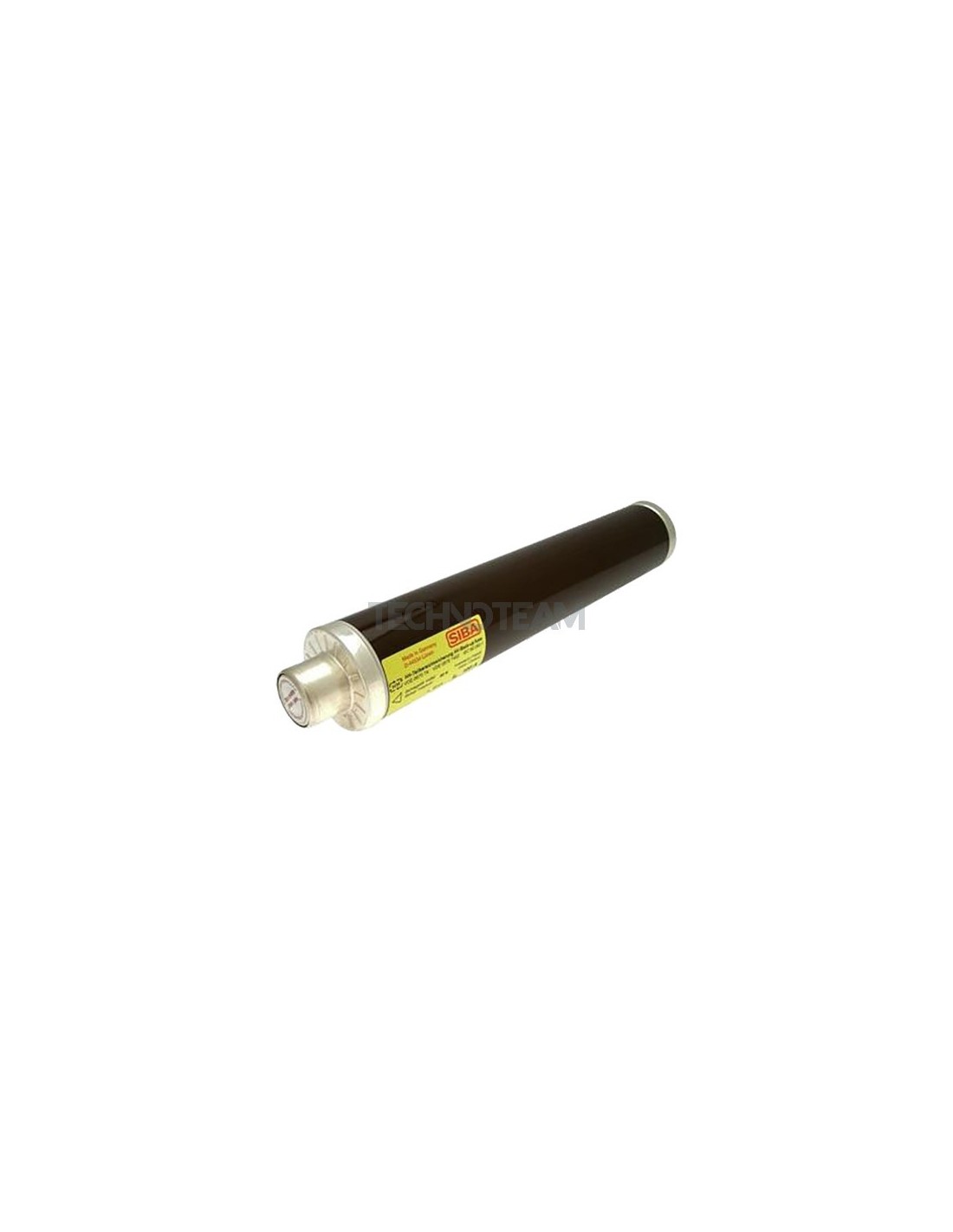

Fuse 12kV 85x442 back-up striker no temp.lim200ARC180
SIBA SIBA
3010314.200.0
Product available on request
- Class
- HH Back up
- Rated current In (A)
- 200
- Rated Voltage Un AC (V)
- 7200
- Rated break.capacity I1 AC (A)
- 80000
- Voltage of total I2t test
- 6264
- Weight (g)
- 5670
- Format
- Cylindrical
- Dimension
- 85x442mm
- Pre-arcing I2t value (A2s)
- 281000
- Total I2t value (A2s)
- 1200000
- Homologations
- IEC
- Power loss (W)
- 119
- Resistance (ohm)
- 0,0021
- Min breaking current I3(A)
- 800
Alternatives
Available
High Voltage fuses
Fuse 24kV 87x442 striker no temp.lim 200ARC112 120N
SIBA SIBA
3002214.200.0
€598.63
Available
High Voltage fuses
Fuse 17,5kV 85x442 striker no temp.lim200ARC140 120N
SIBA SIBA
3023314.200.0
Product available on request
Accessories
Available
for High voltage fuses AC
Storage holders 24kV
3300601.0.0
Product available on request
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses (up to 200A)
3100302.20.0
€16.50
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses & connection bar up to 200A
3400201.0.0
€26.20
Available
for High voltage fuses AC
Fuse holder 12kV 442mm indoor up to 200A
3110102.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 660mm
3100110.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 400mm
3100113.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 970mm
3100114.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 250mm
3100116.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 1200mm
3100117.0.0
Product available on request
