Available
for High voltage fuses AC

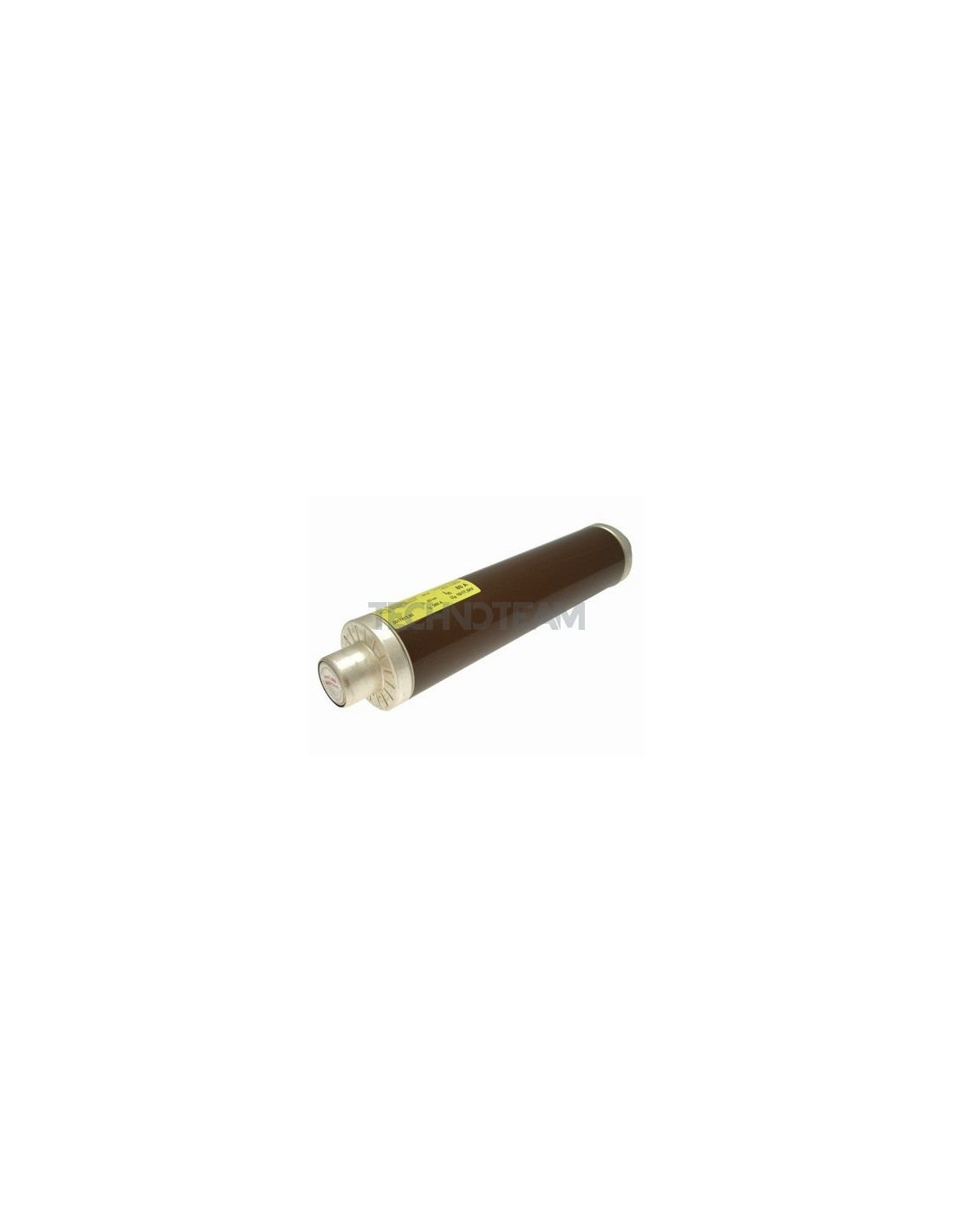

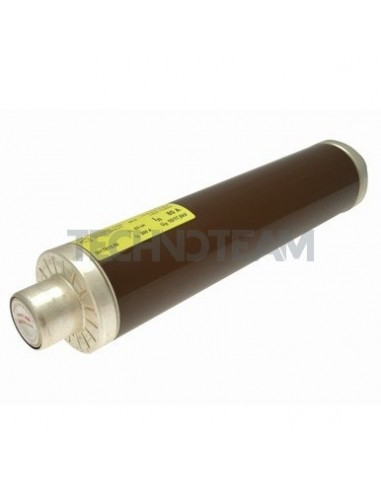

Fuse holder 36kV 537mm indoor up to 200A
3100702.0.0
€319.02
- Class
- HH Back up
- Rated current In (A)
- 200
- Rated Voltage Un AC (V)
- 17500
- Rated break.capacity I1 AC (A)
- 63000
- Voltage of total I2t test
- 15225
- Weight (g)
- 4800
- Format
- Cylindrical
- Dimension
- 85x367mm
- Pre-arcing I2t value (A2s)
- 146000
- Total I2t value (A2s)
- 1166000
- Homologations
- IEC
- Power loss (W)
- 118
- Resistance (ohm)
- 0,0051
- Min breaking current I3(A)
- 800
Accessories
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses (up to 200A)
3100302.20.0
€16.50
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses & connection bar up to 200A
3400201.0.0
€26.20
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 660mm
3100110.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 400mm
3100113.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 970mm
3100114.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 250mm
3100116.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 1200mm
3100117.0.0
Product available on request
