Available
High Voltage fuses

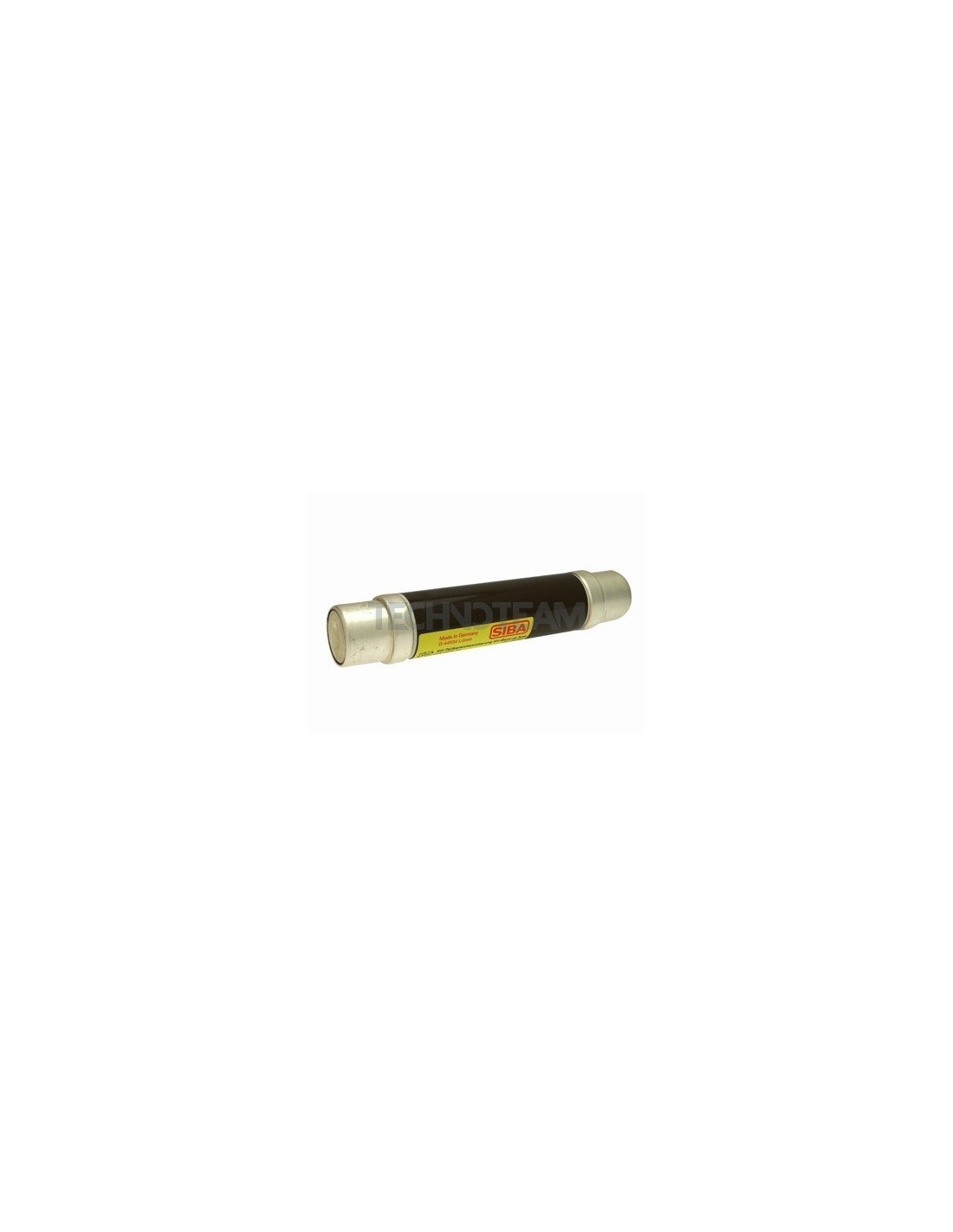

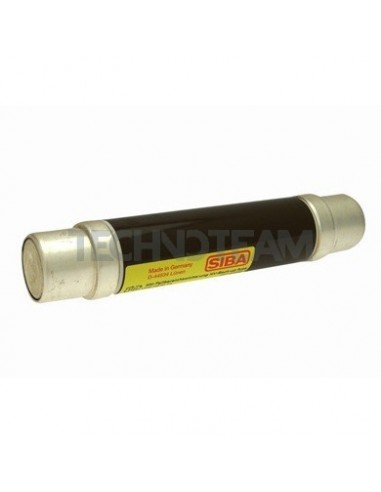

Fuse 7,2kV 53x192 back-up no striker 1A
SIBA SIBA
3000211.1.0
Product available on request
- Class
- HH Back up
- Rated current In (A)
- 1
- Rated Voltage Un AC (V)
- 7200
- Rated break.capacity I1 AC (A)
- 80000
- Voltage of total I2t test
- 6264
- Weight (g)
- 1190
- Format
- Cylindrical
- Dimension
- 53x192mm
- Pre-arcing I2t value (A2s)
- 0,63
- Total I2t value (A2s)
- 2,8
- Homologations
- IEC
- Power loss (W)
- 2,8
- Resistance (ohm)
- 2,1
- Min breaking current I3(A)
- 8
Alternatives
Available
High Voltage fuses
Fuse DIN-VT 12kV 53x192 no striker 1A
SIBA SIBA
3011911.1.0
Product available on request
Accessories
Available
for High voltage fuses AC
Extention fos HV fuses lenght from 192mm to 442mm
3400602.0.0
Product available on request
Available
for High voltage fuses AC
Extention fos HV fuses lenght from 192mm to 292mm
3400402.0.0
Product available on request
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses (up to 200A)
3100302.20.0
€16.50
Available
for High voltage fuses AC
Fuse holder 7,2kV 192mm outdoor up to 200A
3100201.0.0
Product available on request
Available
for High voltage fuses AC
Fuse holder 7,2kV 192mm indoor up to 200A
3100102.0.0
€186.24
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses & connection bar up to 200A
3400201.0.0
€26.20
