High Voltage fuses

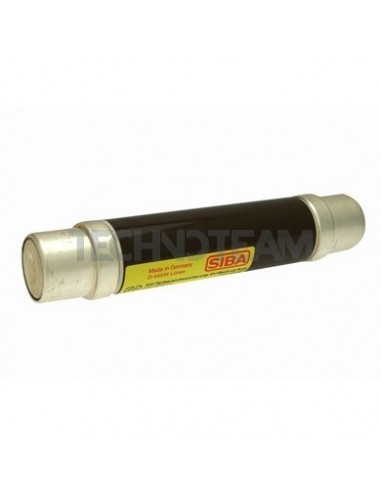

Fuse 17,5kV 53x192 back-up no striker 0,5A
SIBA SIBA
3017911.0,5.0
Product available on request
- Class
- HH Back up
- Rated current In (A)
- 0,5
- Rated Voltage Un AC (V)
- 7200
- Rated break.capacity I1 AC (A)
- 80000
- Voltage of total I2t test
- 6264
- Weight (g)
- 1190
- Format
- Cylindrical
- Dimension
- 53x192mm
- Pre-arcing I2t value (A2s)
- 1,6
- Total I2t value (A2s)
- 5,9
- Homologations
- IEC
- Power loss (W)
- 3,6
- Resistance (ohm)
- 13,25
- Min breaking current I3(A)
- 5
