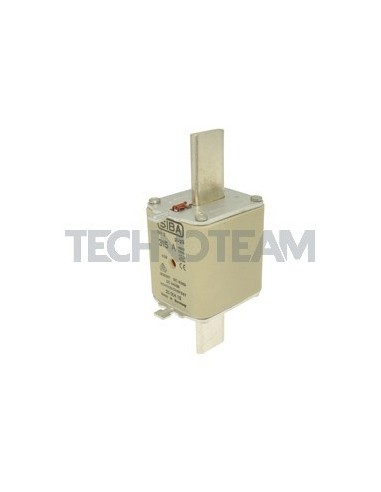

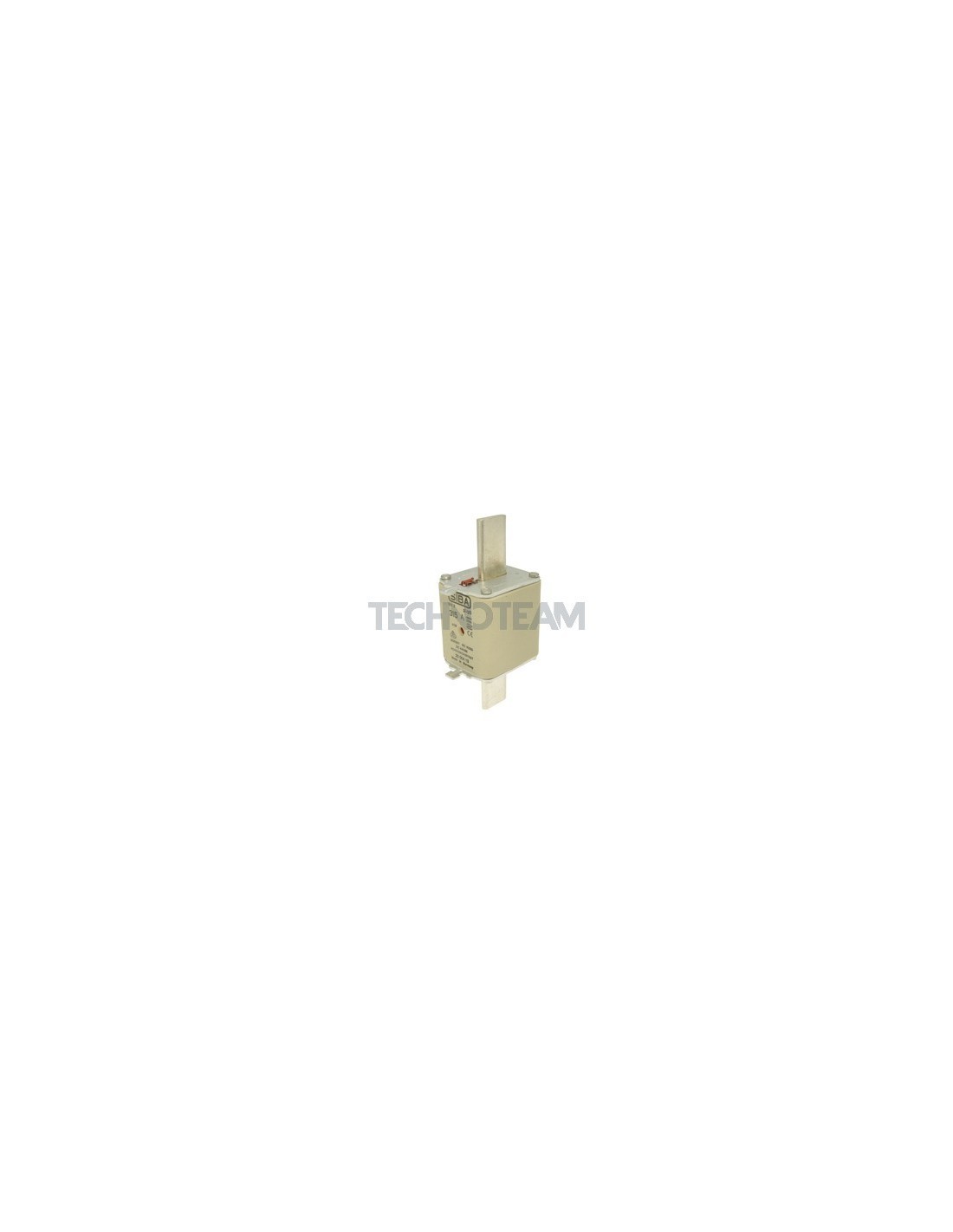

Fuse NH2 gG 500V 355A weatherresistant

    Fuse NH2 gG 500V 355A weatherresistant

    SIBA
    2023913.355.0
    Product available on request

    Product Request:

    Fuse NH2 gG 500V 355A weatherresistant

    Fuse NH2 gG 500V 355A weatherresistant

    do not include special characters

    * Required fields



    Download

    Catalog Datasheet
    Class
    gG
    Rated current In (A)
    355
    Rated Voltage Un AC (V)
    500
    Rated break.capacity I1 AC (A)
    120000
    Voltage of total I2t test
    440
    Weight (g)
    700
    Format
    NH knife contact
    Dimension
    NH2
    Pre-arcing I2t value (A2s)
    616000
    Total I2t value (A2s)
    1483000
    Homologations
    IEC
    Power loss (W)
    30
