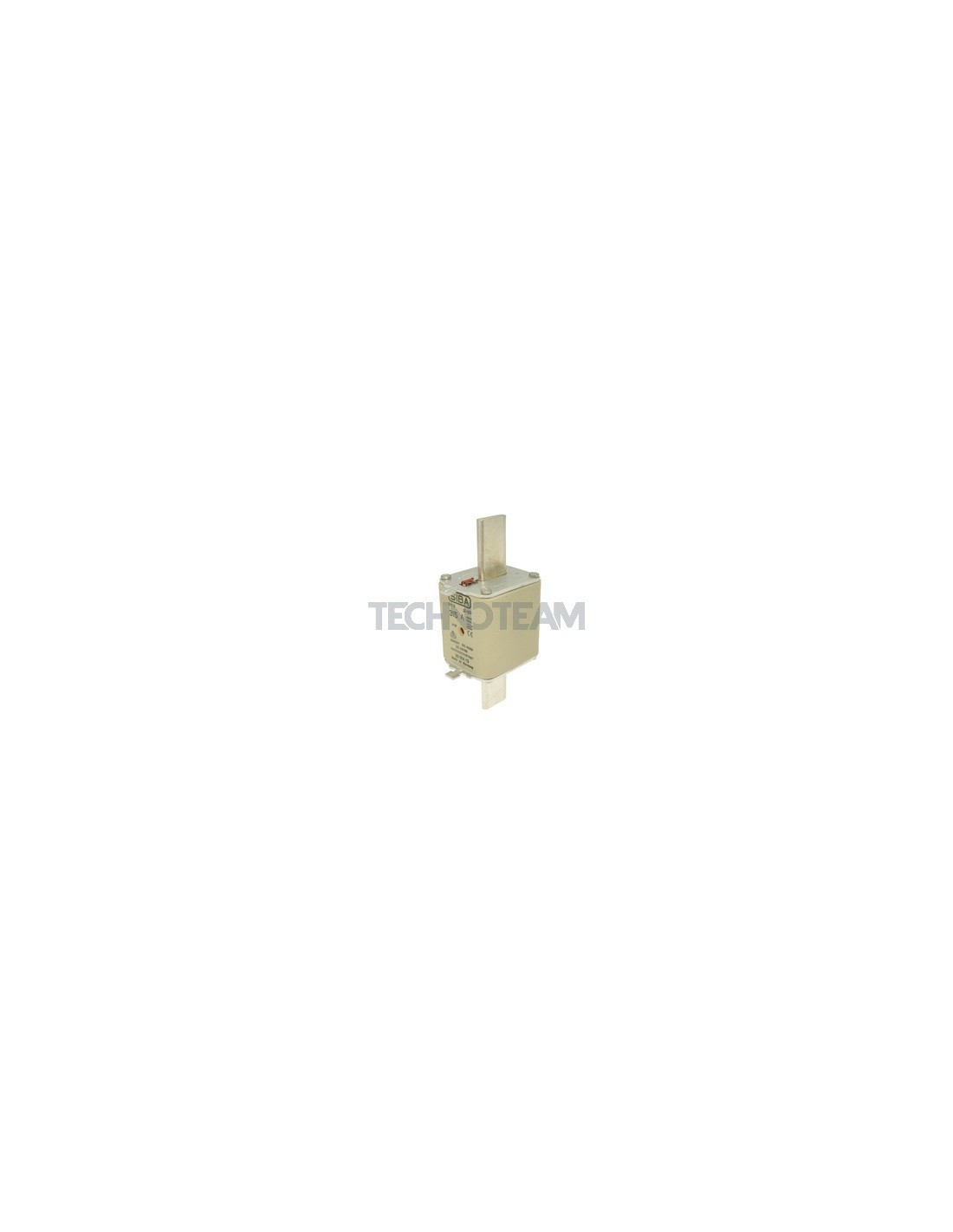

Fuse NH2 gG 500V 35A weatherresistant

    Fuse NH2 gG 500V 35A weatherresistant

    SIBA
    2023913.35.0
    Product available on request

    Product Request:

    Fuse NH2 gG 500V 35A weatherresistant

    Fuse NH2 gG 500V 35A weatherresistant

    do not include special characters

    * Required fields



    Download

    Catalog Datasheet
    Class
    gG
    Rated current In (A)
    35
    Rated Voltage Un AC (V)
    500
    Rated break.capacity I1 AC (A)
    120000
    Voltage of total I2t test
    440
    Weight (g)
    320
    Format
    NH knife contact
    Dimension
    NH2
    Pre-arcing I2t value (A2s)
    3100
    Total I2t value (A2s)
    7610
    Homologations
    IEC
    Power loss (W)
    3,9

    Accessories

    Fuse holder metal/ceramic NH2 690V 400A 1pole
      Available
      for NH knife fuses

      Fuse holder metal/ceramic NH2 690V 400A 1pole

      2100401.0.0
      Rated current In (A)
      400
      Rated Voltage Un AC (V)
      690
      Homologations
      IEC
      Fuses format
      NH knife contact
      Fuses dimension
      NH2
      Number of phase
      1
      Max power dissipation (W)
      45
      €29.98
      Polyester base NH2 1P screw fixing fixed nut connection
        Available
        for NH knife fuses

        Polyester base NH2 1P screw fixing fixed nut connection

        354251.0.0
        Rated current In (A)
        400
        Rated Voltage Un AC (V)
        800
        Format
        NH knife contact
        Dimension
        NH2
        Homologations
        IEC
        Fuses format
        NH knife contact
        Fuses dimension
        NH2
        Rated Voltage Un DC (V)
        750
        Number of phase
        1
        Max power dissipation (W)
        45

        Product available on request

        Switch disconnector NH2 3P doubleV-terminal clamps
          Available
          Horizontal switch disconnectors for NH fuses

          Switch disconnector NH2 3P doubleV-terminal clamps

          63-811685-081.0.0
          Rated current In (A)
          400
          Rated Voltage Un AC (V)
          690
          Homologations
          IEC
          Fuses format
          NH knife contact
          Fuses dimension
          NH2
          Rated Voltage Un DC (V)
          440
          Number of phase
          3
          Max power dissipation (W)
          45

          Product available on request

          Switch disc. NH2 3P top bridge clamps - Electronic ctrl
            Available
            Horizontal switch disconnectors for NH fuses

            Switch disc. NH2 3P top bridge clamps - Electronic ctrl

            63-811786-011.0.0
            Rated current In (A)
            400
            Rated Voltage Un AC (V)
            690
            Homologations
            IEC
            Fuses format
            NH knife contact
            Fuses dimension
            NH2
            Rated Voltage Un DC (V)
            440
            Number of phase
            3
            Max power dissipation (W)
            45

            Product available on request

            Switch disc. NH2 3P bottom screw terminal - Busbar 60mm
              Available
              Horizontal switch disconnectors for NH fuses

              Switch disc. NH2 3P bottom screw terminal - Busbar 60mm

              63-811686-061.0.0
              Rated current In (A)
              400
              Rated Voltage Un AC (V)
              690
              Homologations
              IEC
              Fuses format
              NH knife contact
              Fuses dimension
              NH2
              Rated Voltage Un DC (V)
              440
              Number of phase
              3
              Max power dissipation (W)
              45

              Product available on request

              Switch disconnector NH2 3P V-terminal clamps
                Available
                Horizontal switch disconnectors for NH fuses

                Switch disconnector NH2 3P V-terminal clamps

                63-811685-071.0.0
                Rated current In (A)
                400
                Rated Voltage Un AC (V)
                690
                Homologations
                IEC
                Fuses format
                NH knife contact
                Fuses dimension
                NH2
                Rated Voltage Un DC (V)
                440
                Number of phase
                3
                Max power dissipation (W)
                45

                Product available on request

                Switch disconnector NH2 3P bottom Vclamp - Busbar 100mm
                  Available
                  Horizontal switch disconnectors for NH fuses

                  Switch disconnector NH2 3P bottom Vclamp - Busbar 100mm

                  63-811686-121.0.0
                  Rated current In (A)
                  400
                  Rated Voltage Un AC (V)
                  690
                  Homologations
                  IEC
                  Fuses format
                  NH knife contact
                  Fuses dimension
                  NH2
                  Rated Voltage Un DC (V)
                  440
                  Number of phase
                  3
                  Max power dissipation (W)
                  45

                  Product available on request

                  Switch disconnector NH2 3P bottom doubleVclamp - Busbar 60mm
                    Available
                    Horizontal switch disconnectors for NH fuses

                    Switch disconnector NH2 3P bottom doubleVclamp - Busbar 60mm

                    63-811686-141.0.0
                    Rated current In (A)
                    400
                    Rated Voltage Un AC (V)
                    690
                    Homologations
                    IEC
                    Fuses format
                    NH knife contact
                    Fuses dimension
                    NH2
                    Rated Voltage Un DC (V)
                    440
                    Number of phase
                    3
                    Max power dissipation (W)
                    45

                    Product available on request

                    Switch disc NH2 3P bottom bridge clamp -Busbar100-Elect ctrl
                      Available
                      Horizontal switch disconnectors for NH fuses

                      Switch disc NH2 3P bottom bridge clamp -Busbar100-Elect ctrl

                      63-811788-041.0.0
                      Rated current In (A)
                      400
                      Rated Voltage Un AC (V)
                      690
                      Homologations
                      IEC
                      Fuses format
                      NH knife contact
                      Fuses dimension
                      NH2
                      Rated Voltage Un DC (V)
                      440
                      Number of phase
                      3
                      Max power dissipation (W)
                      45

                      Product available on request

                      Switch disconnector NH2 3P bottom Vclamp - Busbar 60mm
                        Available
                        Horizontal switch disconnectors for NH fuses

                        Switch disconnector NH2 3P bottom Vclamp - Busbar 60mm

                        63-811686-101.0.0
                        Rated current In (A)
                        400
                        Rated Voltage Un AC (V)
                        690
                        Homologations
                        IEC
                        Fuses format
                        NH knife contact
                        Fuses dimension
                        NH2
                        Rated Voltage Un DC (V)
                        440
                        Number of phase
                        3
                        Max power dissipation (W)
                        45

                        Product available on request

                        Switch disconnector NH2 3P top screw terminal - Busbar 60mm
                          Available
                          Horizontal switch disconnectors for NH fuses

                          Switch disconnector NH2 3P top screw terminal - Busbar 60mm

                          63-811686-051.0.0
                          Rated current In (A)
                          400
                          Rated Voltage Un AC (V)
                          690
                          Homologations
                          IEC
                          Fuses format
                          NH knife contact
                          Fuses dimension
                          NH2
                          Rated Voltage Un DC (V)
                          440
                          Number of phase
                          3
                          Max power dissipation (W)
                          45
                          €487.56
                          Switch disc NH2 3P top bridge clamps - Busbar60 - Elect ctrl
                            Available
                            Horizontal switch disconnectors for NH fuses

                            Switch disc NH2 3P top bridge clamps - Busbar60 - Elect ctrl

                            63-811788-011.0.0
                            Rated current In (A)
                            400
                            Rated Voltage Un AC (V)
                            690
                            Homologations
                            IEC
                            Fuses format
                            NH knife contact
                            Fuses dimension
                            NH2
                            Rated Voltage Un DC (V)
                            440
                            Number of phase
                            3
                            Max power dissipation (W)
                            45

                            Product available on request

                            Switch disconnector NH2 3P top screw terminal - Busbar 100mm
                              Available
                              Horizontal switch disconnectors for NH fuses

                              Switch disconnector NH2 3P top screw terminal - Busbar 100mm

                              63-811686-071.0.0
                              Rated current In (A)
                              400
                              Rated Voltage Un AC (V)
                              690
                              Homologations
                              IEC
                              Fuses format
                              NH knife contact
                              Fuses dimension
                              NH2
                              Rated Voltage Un DC (V)
                              440
                              Number of phase
                              3
                              Max power dissipation (W)
                              45

                              Product available on request

                              Switch disc NH2 3P top bridge clamps -Busbar100 - Elect ctrl
                                Available
                                Horizontal switch disconnectors for NH fuses

                                Switch disc NH2 3P top bridge clamps -Busbar100 - Elect ctrl

                                63-811788-031.0.0
                                Rated current In (A)
                                400
                                Rated Voltage Un AC (V)
                                690
                                Homologations
                                IEC
                                Fuses format
                                NH knife contact
                                Fuses dimension
                                NH2
                                Rated Voltage Un DC (V)
                                440
                                Number of phase
                                3
                                Max power dissipation (W)
                                45

                                Product available on request

                                Switch disconnector NH2 3P screw terminal
                                  Available
                                  Horizontal switch disconnectors for NH fuses

                                  Switch disconnector NH2 3P screw terminal

                                  63-811685-061.0.0
                                  Rated current In (A)
                                  400
                                  Rated Voltage Un AC (V)
                                  690
                                  Homologations
                                  IEC
                                  Fuses format
                                  NH knife contact
                                  Fuses dimension
                                  NH2
                                  Rated Voltage Un DC (V)
                                  440
                                  Number of phase
                                  3
                                  Max power dissipation (W)
                                  45
                                  €259.58
                                  Switch disc. NH2 3P bottom screw terminal -Busbar 100mm
                                    Available
                                    Horizontal switch disconnectors for NH fuses

                                    Switch disc. NH2 3P bottom screw terminal -Busbar 100mm

                                    63-811686-081.0.0
                                    Rated current In (A)
                                    400
                                    Rated Voltage Un AC (V)
                                    690
                                    Homologations
                                    IEC
                                    Fuses format
                                    NH knife contact
                                    Fuses dimension
                                    NH2
                                    Rated Voltage Un DC (V)
                                    440
                                    Number of phase
                                    3
                                    Max power dissipation (W)
                                    45

                                    Product available on request

                                    Switch disconnector NH2 3P top doubleVclamp - Busbar 60mm
                                      Available
                                      Horizontal switch disconnectors for NH fuses

                                      Switch disconnector NH2 3P top doubleVclamp - Busbar 60mm

                                      63-811686-131.0.0
                                      Rated current In (A)
                                      400
                                      Rated Voltage Un AC (V)
                                      690
                                      Homologations
                                      IEC
                                      Fuses format
                                      NH knife contact
                                      Fuses dimension
                                      NH2
                                      Rated Voltage Un DC (V)
                                      440
                                      Number of phase
                                      3
                                      Max power dissipation (W)
                                      45

                                      Product available on request

                                      Switch disconnector NH2 3P top Vclamp - Busbar 60mm
                                        Available
                                        Horizontal switch disconnectors for NH fuses

                                        Switch disconnector NH2 3P top Vclamp - Busbar 60mm

                                        63-811686-091.0.0
                                        Rated current In (A)
                                        400
                                        Rated Voltage Un AC (V)
                                        690
                                        Homologations
                                        IEC
                                        Fuses format
                                        NH knife contact
                                        Fuses dimension
                                        NH2
                                        Rated Voltage Un DC (V)
                                        440
                                        Number of phase
                                        3
                                        Max power dissipation (W)
                                        45

                                        Product available on request

                                        Switch disconnector NH2 3P top Vclamp - Busbar 100mm
                                          Available
                                          Horizontal switch disconnectors for NH fuses

                                          Switch disconnector NH2 3P top Vclamp - Busbar 100mm

                                          63-811686-111.0.0
                                          Rated current In (A)
                                          400
                                          Rated Voltage Un AC (V)
                                          690
                                          Homologations
                                          IEC
                                          Fuses format
                                          NH knife contact
                                          Fuses dimension
                                          NH2
                                          Rated Voltage Un DC (V)
                                          440
                                          Number of phase
                                          3
                                          Max power dissipation (W)
                                          45

                                          Product available on request

                                          Switch disconnector NH2 3P bridge clamps
                                            Available
                                            Horizontal switch disconnectors for NH fuses

                                            Switch disconnector NH2 3P bridge clamps

                                            63-811685-011.0.0
                                            Rated current In (A)
                                            400
                                            Rated Voltage Un AC (V)
                                            690
                                            Homologations
                                            IEC
                                            Fuses format
                                            NH knife contact
                                            Fuses dimension
                                            NH2
                                            Rated Voltage Un DC (V)
                                            440
                                            Number of phase
                                            3
                                            Max power dissipation (W)
                                            45

                                            Product available on request

                                            Switch disconnector NH2 3P top doubleVclamp - Busbar 100mm
                                              Available
                                              Horizontal switch disconnectors for NH fuses

                                              Switch disconnector NH2 3P top doubleVclamp - Busbar 100mm

                                              63-811686-151.0.0
                                              Rated current In (A)
                                              400
                                              Rated Voltage Un AC (V)
                                              690
                                              Homologations
                                              IEC
                                              Fuses format
                                              NH knife contact
                                              Fuses dimension
                                              NH2
                                              Rated Voltage Un DC (V)
                                              440
                                              Number of phase
                                              3
                                              Max power dissipation (W)
                                              45

                                              Product available on request

                                              Switch disc. NH2 3P bottom doubleVclamp - Busbar 100mm
                                                Available
                                                Horizontal switch disconnectors for NH fuses

                                                Switch disc. NH2 3P bottom doubleVclamp - Busbar 100mm

                                                63-811686-161.0.0
                                                Rated current In (A)
                                                400
                                                Rated Voltage Un AC (V)
                                                690
                                                Homologations
                                                IEC
                                                Fuses format
                                                NH knife contact
                                                Fuses dimension
                                                NH2
                                                Rated Voltage Un DC (V)
                                                440
                                                Number of phase
                                                3
                                                Max power dissipation (W)
                                                45

                                                Product available on request

                                                Switch disc. NH2 3P bottom bridge clamps - Electronic ctrl
                                                  Available
                                                  Horizontal switch disconnectors for NH fuses

                                                  Switch disc. NH2 3P bottom bridge clamps - Electronic ctrl

                                                  63-811786-021.0.0
                                                  Rated current In (A)
                                                  400
                                                  Rated Voltage Un AC (V)
                                                  690
                                                  Homologations
                                                  IEC
                                                  Fuses format
                                                  NH knife contact
                                                  Fuses dimension
                                                  NH2
                                                  Rated Voltage Un DC (V)
                                                  440
                                                  Number of phase
                                                  3
                                                  Max power dissipation (W)
                                                  45

                                                  Product available on request

                                                  Switch disc NH2 3P bottom bridge clamp -Busbar60 -Elect ctrl
                                                    Available
                                                    Horizontal switch disconnectors for NH fuses

                                                    Switch disc NH2 3P bottom bridge clamp -Busbar60 -Elect ctrl

                                                    63-811788-021.0.0
                                                    Rated current In (A)
                                                    400
                                                    Rated Voltage Un AC (V)
                                                    690
                                                    Homologations
                                                    IEC
                                                    Fuses format
                                                    NH knife contact
                                                    Fuses dimension
                                                    NH2
                                                    Rated Voltage Un DC (V)
                                                    440
                                                    Number of phase
                                                    3
                                                    Max power dissipation (W)
                                                    45

                                                    Product available on request

                                                    Swich disconn. NH2 3P BS 690V conn. screw
                                                      Available
                                                      Horizontal switch disconnectors for NH fuses

                                                      Swich disconn. NH2 3P BS 690V conn. screw

                                                      335155.0.0
                                                      Rated current In (A)
                                                      400
                                                      Rated Voltage Un AC (V)
                                                      690
                                                      Homologations
                                                      IEC
                                                      Fuses format
                                                      NH knife contact
                                                      Fuses dimension
                                                      NH2
                                                      Number of phase
                                                      3
                                                      Max power dissipation (W)
                                                      45

                                                      Product available on request

                                                      Switch disc. NH2 3P Vshape clamps - bottom S bridge clamps
                                                        Available
                                                        Horizontal switch disconnectors for NH fuses

                                                        Switch disc. NH2 3P Vshape clamps - bottom S bridge clamps

                                                        63-811685-201.0.0
                                                        Rated current In (A)
                                                        400
                                                        Rated Voltage Un AC (V)
                                                        690
                                                        Homologations
                                                        IEC
                                                        Fuses format
                                                        NH knife contact
                                                        Fuses dimension
                                                        NH2
                                                        Rated Voltage Un DC (V)
                                                        440
                                                        Number of phase
                                                        3
                                                        Max power dissipation (W)
                                                        45

                                                        Product available on request

                                                        Switch disc. NH2 3P top Vshape clamps - bottom screw termina
                                                          Available
                                                          Horizontal switch disconnectors for NH fuses

                                                          Switch disc. NH2 3P top Vshape clamps - bottom screw termina

                                                          63-811685-202.0.0
                                                          Rated current In (A)
                                                          400
                                                          Rated Voltage Un AC (V)
                                                          690
                                                          Homologations
                                                          IEC
                                                          Fuses format
                                                          NH knife contact
                                                          Fuses dimension
                                                          NH2
                                                          Rated Voltage Un DC (V)
                                                          440
                                                          Number of phase
                                                          3
                                                          Max power dissipation (W)
                                                          45

                                                          Product available on request

                                                          Switch disc. NH2 3P top S bridge clamps - bottom Vclamps
                                                            Available
                                                            Horizontal switch disconnectors for NH fuses

                                                            Switch disc. NH2 3P top S bridge clamps - bottom Vclamps

                                                            63-811685-203.0.0
                                                            Rated current In (A)
                                                            400
                                                            Rated Voltage Un AC (V)
                                                            690
                                                            Homologations
                                                            IEC
                                                            Fuses format
                                                            NH knife contact
                                                            Fuses dimension
                                                            NH2
                                                            Rated Voltage Un DC (V)
                                                            440
                                                            Number of phase
                                                            3
                                                            Max power dissipation (W)
                                                            45

                                                            Product available on request

                                                            Switch disc. NH2 3P top screw terminal - bottom Vclamps
                                                              Available
                                                              Horizontal switch disconnectors for NH fuses

                                                              Switch disc. NH2 3P top screw terminal - bottom Vclamps

                                                              63-811685-204.0.0
                                                              Rated current In (A)
                                                              400
                                                              Rated Voltage Un AC (V)
                                                              690
                                                              Homologations
                                                              IEC
                                                              Fuses format
                                                              NH knife contact
                                                              Fuses dimension
                                                              NH2
                                                              Rated Voltage Un DC (V)
                                                              440
                                                              Number of phase
                                                              3
                                                              Max power dissipation (W)
                                                              45

                                                              Product available on request

                                                              Vert. switch NH1/2 690V 1poles switching V
                                                                Available
                                                                Vertical switch disconnectors 800V for NH fuses

                                                                Vert. switch NH1/2 690V 1poles switching V

                                                                63-001340-001.0.0
                                                                Rated current In (A)
                                                                400
                                                                Rated Voltage Un AC (V)
                                                                690
                                                                Homologations
                                                                IEC
                                                                Fuses format
                                                                NH knife contact
                                                                Fuses dimension
                                                                NH1 NH2

                                                                Product available on request

                                                                Vert. switch NH1/2 690V 1poles switching V
                                                                  Available
                                                                  Vertical switch disconnectors 800V for NH fuses

                                                                  Vert. switch NH1/2 690V 1poles switching V

                                                                  63-001340-002.0.0
                                                                  Rated current In (A)
                                                                  400
                                                                  Rated Voltage Un AC (V)
                                                                  690
                                                                  Homologations
                                                                  IEC
                                                                  Fuses format
                                                                  NH knife contact
                                                                  Fuses dimension
                                                                  NH1 NH2

                                                                  Product available on request

                                                                  Vert. switch NH1/2 690V 1poles switching M12
                                                                    Available
                                                                    Vertical switch disconnectors 800V for NH fuses

                                                                    Vert. switch NH1/2 690V 1poles switching M12

                                                                    63-001340-003.0.0
                                                                    Rated current In (A)
                                                                    400
                                                                    Rated Voltage Un AC (V)
                                                                    690
                                                                    Homologations
                                                                    IEC
                                                                    Fuses format
                                                                    NH knife contact
                                                                    Fuses dimension
                                                                    NH1 NH2

                                                                    Product available on request

                                                                    Vert. switch NH1/2 690V 1poles switching 2V
                                                                      Available
                                                                      Vertical switch disconnectors 800V for NH fuses

                                                                      Vert. switch NH1/2 690V 1poles switching 2V

                                                                      63-001340-005.0.0
                                                                      Rated current In (A)
                                                                      400
                                                                      Rated Voltage Un AC (V)
                                                                      690
                                                                      Homologations
                                                                      IEC
                                                                      Fuses format
                                                                      NH knife contact
                                                                      Fuses dimension
                                                                      NH1 NH2

                                                                      Product available on request

                                                                      Vert. switch NH1/2 690V 3poles switching V
                                                                        Available
                                                                        Vertical switch disconnectors 800V for NH fuses

                                                                        Vert. switch NH1/2 690V 3poles switching V

                                                                        63-001341-001.0.0
                                                                        Rated current In (A)
                                                                        400
                                                                        Rated Voltage Un AC (V)
                                                                        690
                                                                        Homologations
                                                                        IEC
                                                                        Fuses format
                                                                        NH knife contact
                                                                        Fuses dimension
                                                                        NH1 NH2

                                                                        Product available on request

                                                                        Vert. switch NH1/2 690V 3poles switching M12
                                                                          Available
                                                                          Vertical switch disconnectors 800V for NH fuses

                                                                          Vert. switch NH1/2 690V 3poles switching M12

                                                                          63-001341-003.0.0
                                                                          Rated current In (A)
                                                                          400
                                                                          Rated Voltage Un AC (V)
                                                                          690
                                                                          Homologations
                                                                          IEC
                                                                          Fuses format
                                                                          NH knife contact
                                                                          Fuses dimension
                                                                          NH1 NH2

                                                                          Product available on request

                                                                          Vert. switch NH1/2 690V 3poles switching 2V
                                                                            Available
                                                                            Vertical switch disconnectors 800V for NH fuses

                                                                            Vert. switch NH1/2 690V 3poles switching 2V

                                                                            63-001341-005.0.0
                                                                            Rated current In (A)
                                                                            400
                                                                            Rated Voltage Un AC (V)
                                                                            690
                                                                            Homologations
                                                                            IEC
                                                                            Fuses format
                                                                            NH knife contact
                                                                            Fuses dimension
                                                                            NH1 NH2

                                                                            Product available on request

                                                                            Vert. switch NH1/2 690V 3poles switching V
                                                                              Available
                                                                              Vertical switch disconnectors 800V for NH fuses

                                                                              Vert. switch NH1/2 690V 3poles switching V

                                                                              63-001341-007.0.0
                                                                              Rated current In (A)
                                                                              400
                                                                              Rated Voltage Un AC (V)
                                                                              690
                                                                              Homologations
                                                                              IEC
                                                                              Fuses format
                                                                              NH knife contact
                                                                              Fuses dimension
                                                                              NH1 NH2

                                                                              Product available on request

                                                                              Product added to wishlist
                                                                              Product added to compare.
