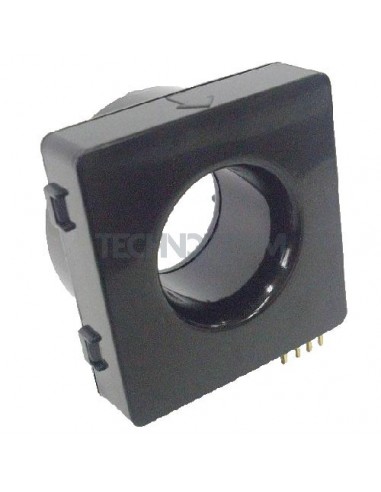

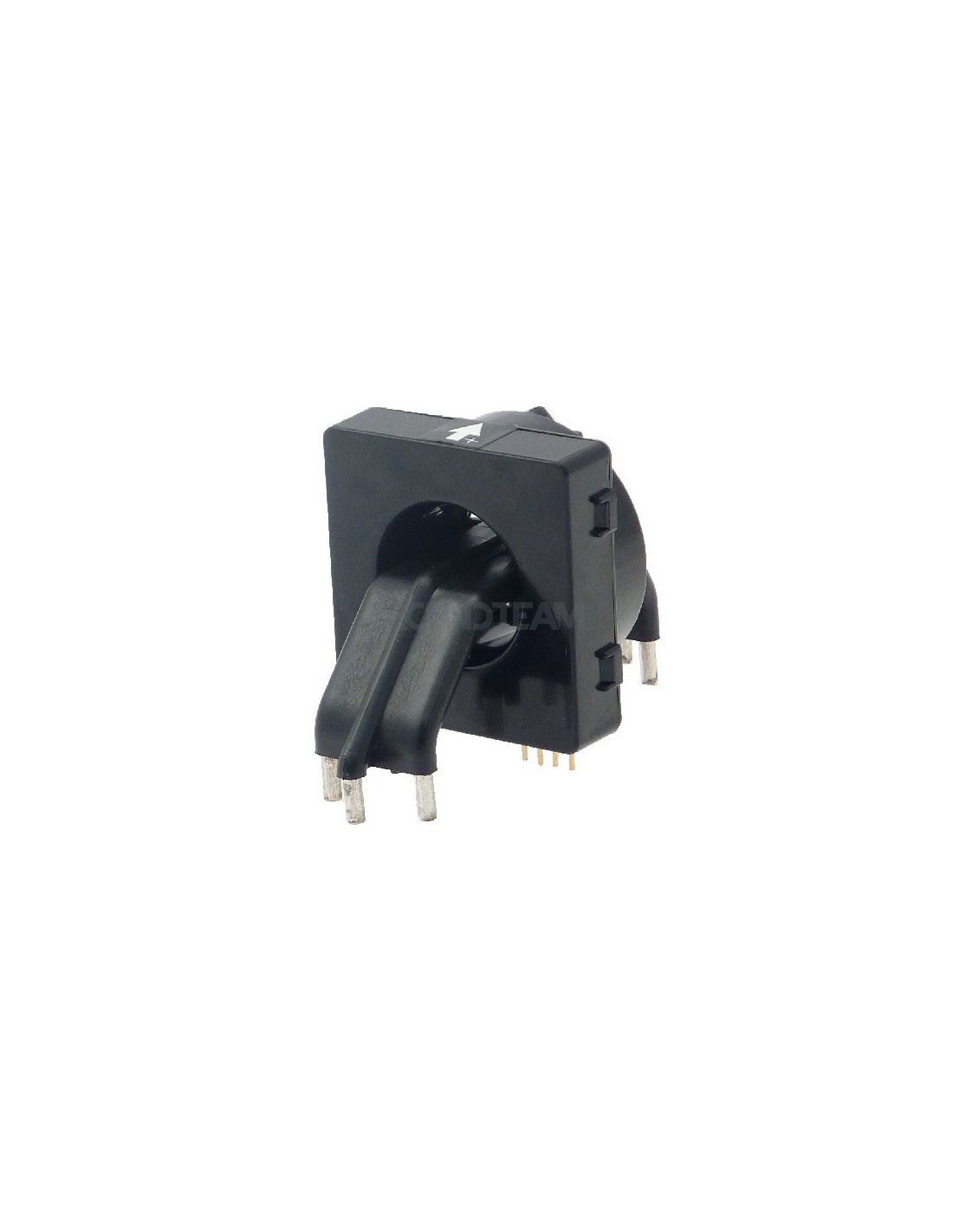

Current sensor through hole type DC 25mA
Current sensor through hole type DC 25mA
    Current sensor through hole type DC 25mA
    Current sensor through hole type DC 25mA

    Current sensor through hole type DC 25mA

    MULTI
    DCZCT-20CDHL-HP.0.0
    Product available on request

    Product Request:


    Current sensor through hole type DC 25mA

    Current sensor through hole type DC 25mA

    do not include special characters

    * Required fields



    Suitable as residual current device (RCD) for EV charging
    Application: E-mobility, electrical vehiacles chargers
    (No internal circuit board)
    For trigger 6mA DC leackage
    current for safety by IEC61851
    Application case:
    IC-CPD inside RCD unit for EV
    Weight (g)
    27
    Inside diameter (mm)
    20
    Housing
    Through hole type for PCB
    Dimensions (mm)
    42 x 56 x 17
    Operation temperature
    -20 C +80 C 85%RH without condensation
    Output
    1500mVDC
    Power Supply Voltage (V)
    12
    Accuracy
    2%
    Applicable current DC (A)
    0,025
    Type of output connection
    Pin 3,6mm
