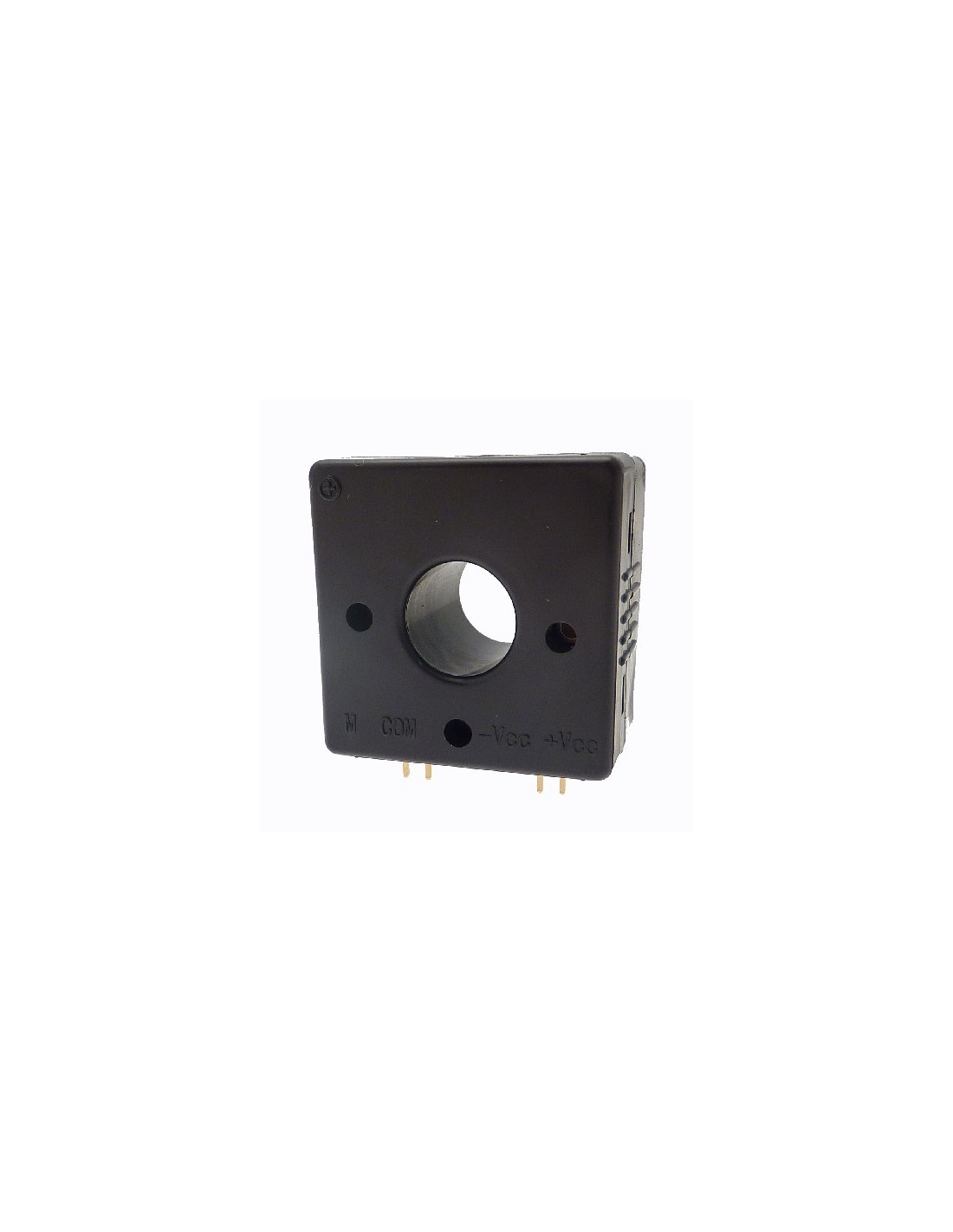

Current sensor through hole type leakage AC,DC 200mA

    Current sensor through hole type leakage AC,DC 200mA

    MULTI
    FDAZCT-11L-0.2.0.0
    Product available on request

    Product Request:


    Current sensor through hole type leakage AC,DC 200mA

    Current sensor through hole type leakage AC,DC 200mA

    do not include special characters

    * Required fields



    Weight (g)
    25
    Inside diameter (mm)
    11
    Housing
    Through hole type for PCB
    Dimensions (mm)
    30 x 30 x 19,2
    Operation temperature
    -20 C +85 C 85%RH without condensation
    Output
    5V
    Frequency f (kHz)
    18
    Applicable current AC (A)
    0,200
    Max capable current (A)
    0,400
    Power Supply Voltage (V)
    15
    Accuracy
    1%
    Applicable current DC (A)
    0,200
    Type of output connection
    Pin 4,8mm
