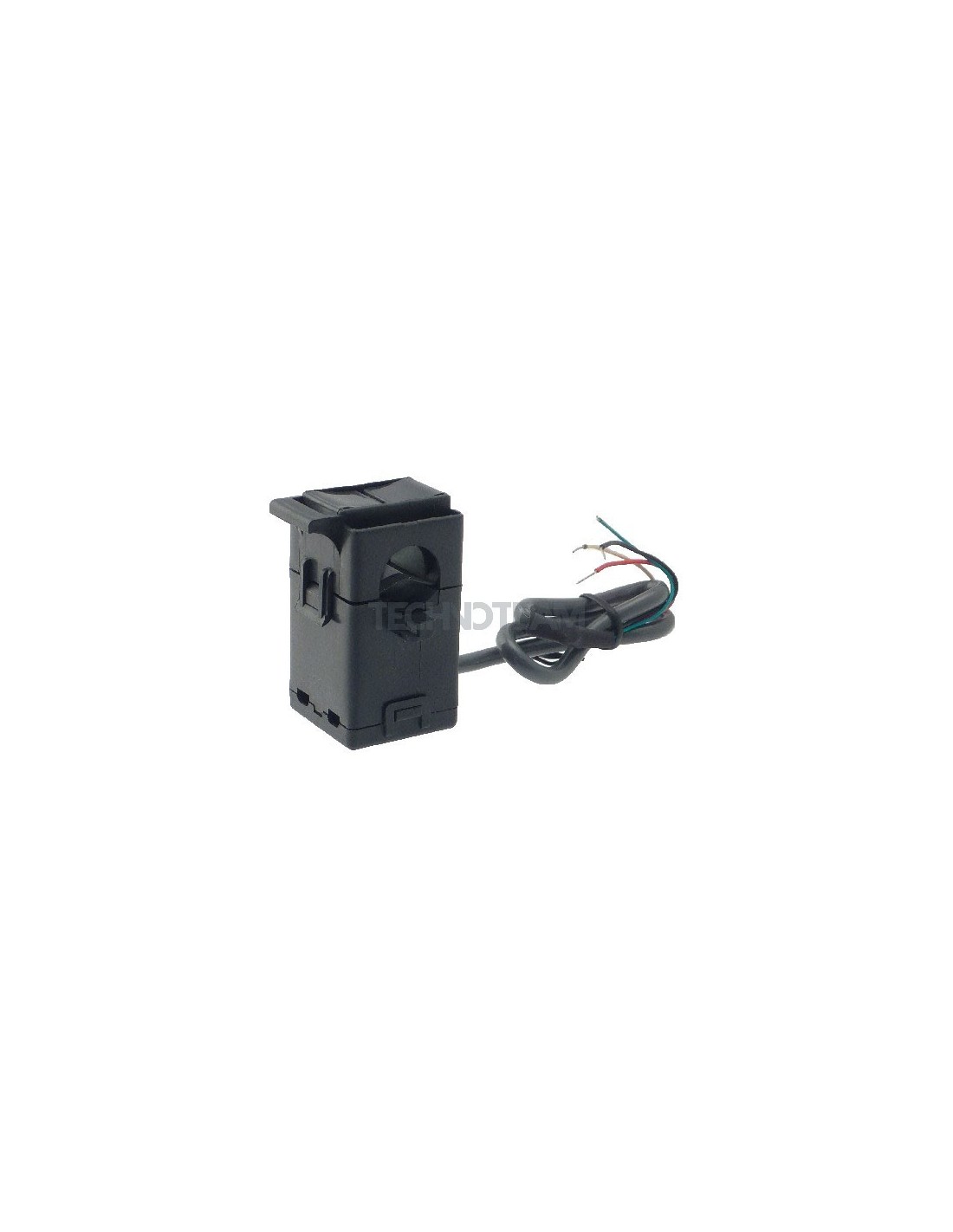

Current sensor split type AC,DC 100A (power supply 24V)
Current sensor split type AC,DC 100A (power supply 24V)
    Current sensor split type AC,DC 100A (power supply 24V)
    Current sensor split type AC,DC 100A (power supply 24V)

    Current sensor split type AC,DC 100A (power supply 24V)

    MULTI
    CTF-100DC-U24.0.0
    Product available on request

    Product Request:


    Current sensor split type AC,DC 100A (power supply 24V)

    Current sensor split type AC,DC 100A (power supply 24V)

    do not include special characters

    * Required fields



    Weight (g)
    80
    Inside diameter (mm)
    16
    Housing
    Split type
    Dimensions (mm)
    31 x 30 x 54
    Operation temperature
    -10 C +75 C 80%RH
    Output
    4V
    Frequency f (kHz)
    10
    Applicable current AC (A)
    100
    Max capable current (A)
    150
    Power Supply Voltage (V)
    24
    Accuracy
    1%
    Applicable current DC (A)
    100
    Type of output connection
    2m 4-wires cable
