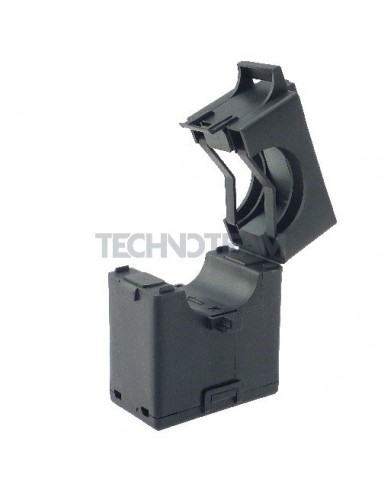

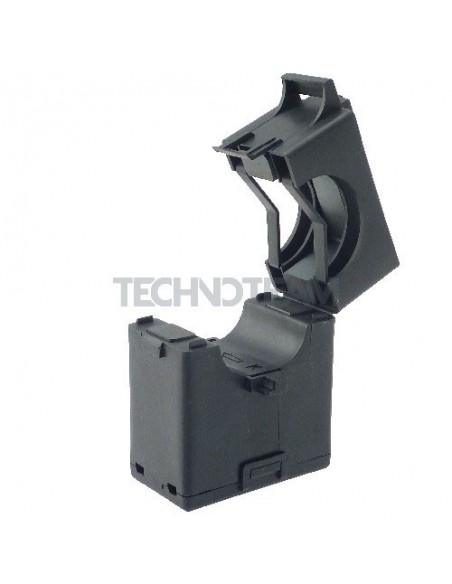

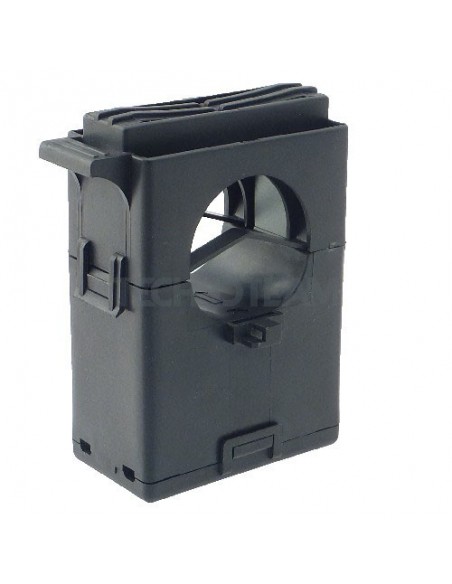

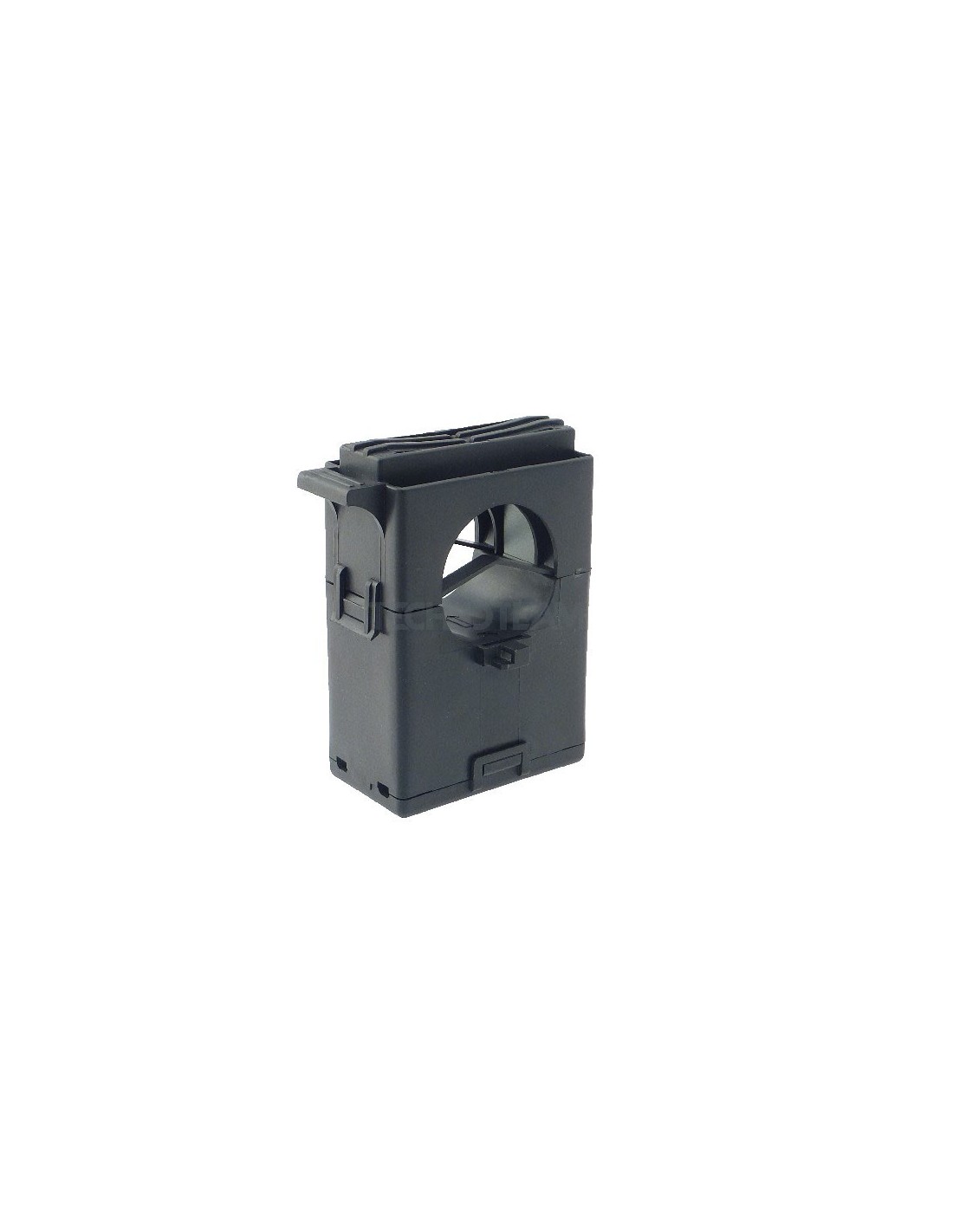

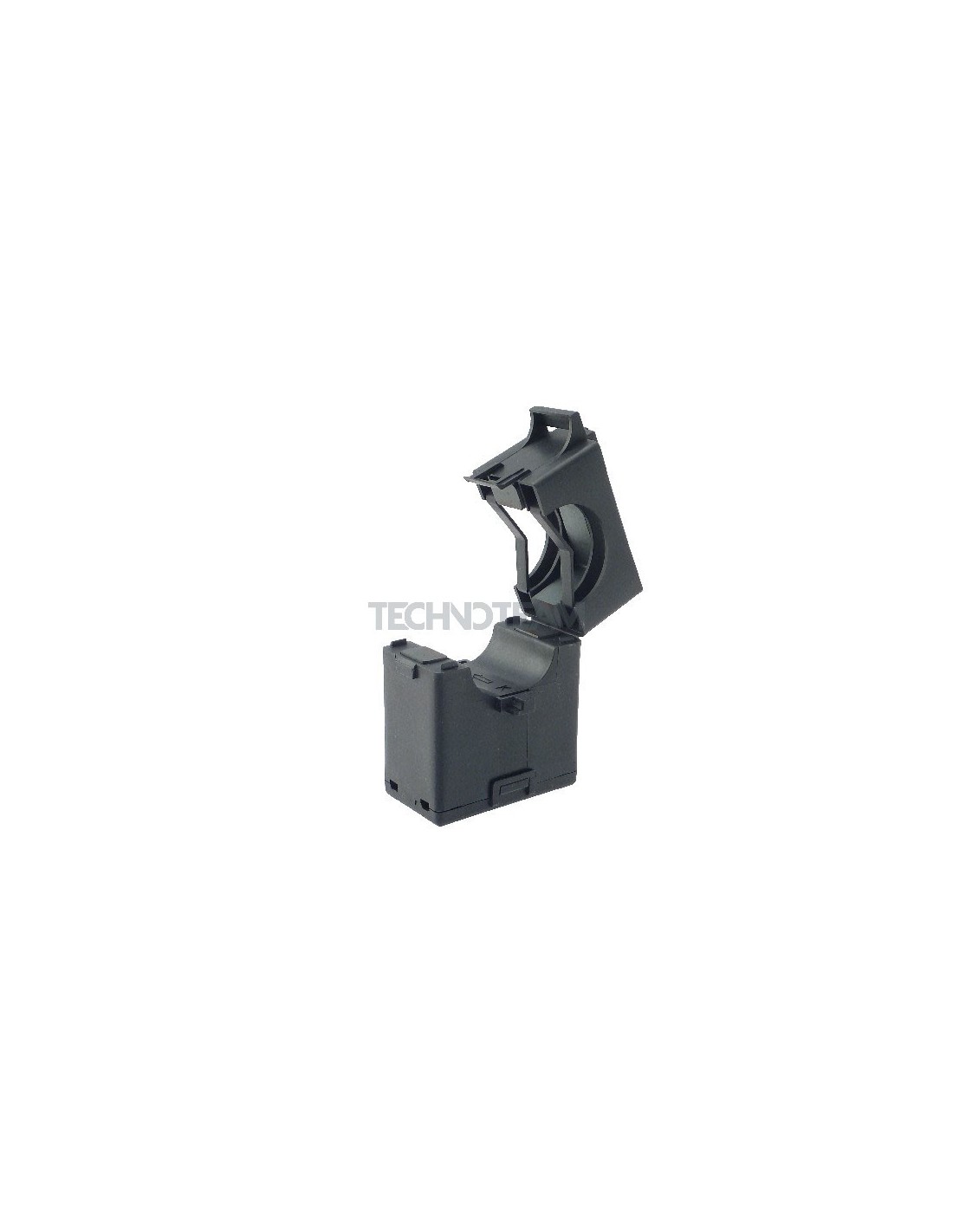

Current sensor split type AC 200A
Current sensor split type AC 200A
    Current sensor split type AC 200A
    Current sensor split type AC 200A

    Current sensor split type AC 200A

    MULTI
    CTF-200T.0.0
    Product available on request

    Product Request:


    Current sensor split type AC 200A

    Current sensor split type AC 200A

    do not include special characters

    * Required fields



    TA: Current transformer
    Weight (g)
    310
    Inside diameter (mm)
    35
    Housing
    Split type
    Dimensions (mm)
    60 x 40 x 80
    Operation temperature
    -10 C +50 C 80%RH without condensation
    Output
    1A
    Frequency f (kHz)
    5
    Applicable current AC (A)
    200
    Max capable current (A)
    240
    Type of output connection
    Screws M2,6
