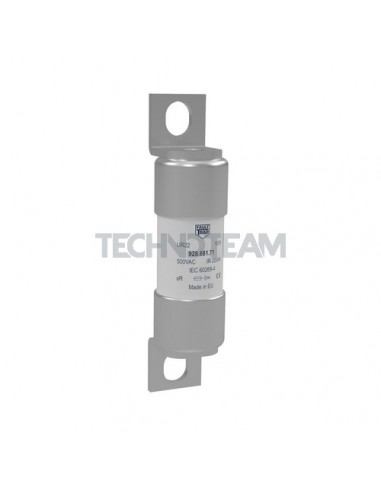

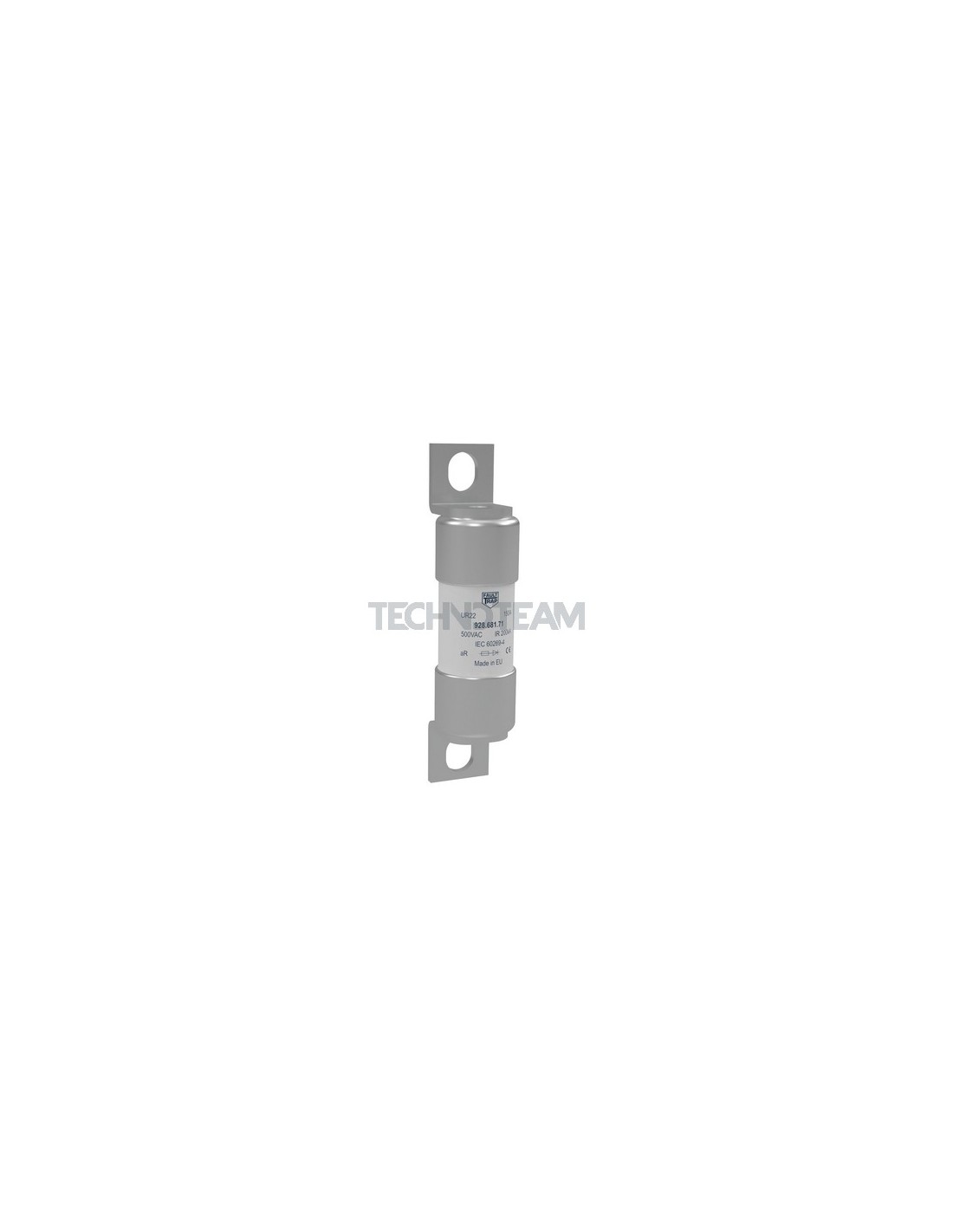

UR22 - Fuse 690V AC 22x58 fixing 80mm 40A

    UR22 - Fuse 690V AC 22x58 fixing 80mm 40A

    FAULTRAP
    100.913.34.0.0
    Product available on request

    Product Request:


    UR22 - Fuse 690V AC 22x58 fixing 80mm 40A

    UR22 - Fuse 690V AC 22x58 fixing 80mm 40A

    do not include special characters

    * Required fields



    Class
    aR
    Rated current In (A)
    40
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    690
    Format
    Screw fixing
    Dimension
    22x58mm
    Pre-arcing I2t value (A2s)
    148
    Total I2t value (A2s)
    640
    Homologations
    IEC
    Power loss (W)
    9,6
    Catalog name
    UR22
