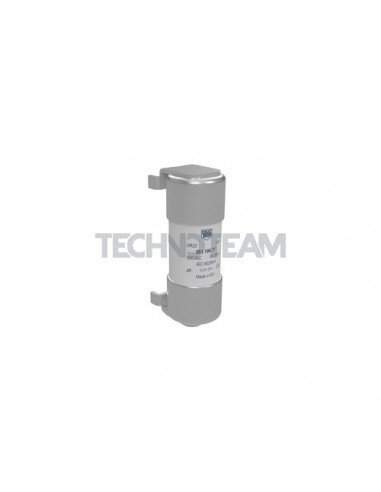

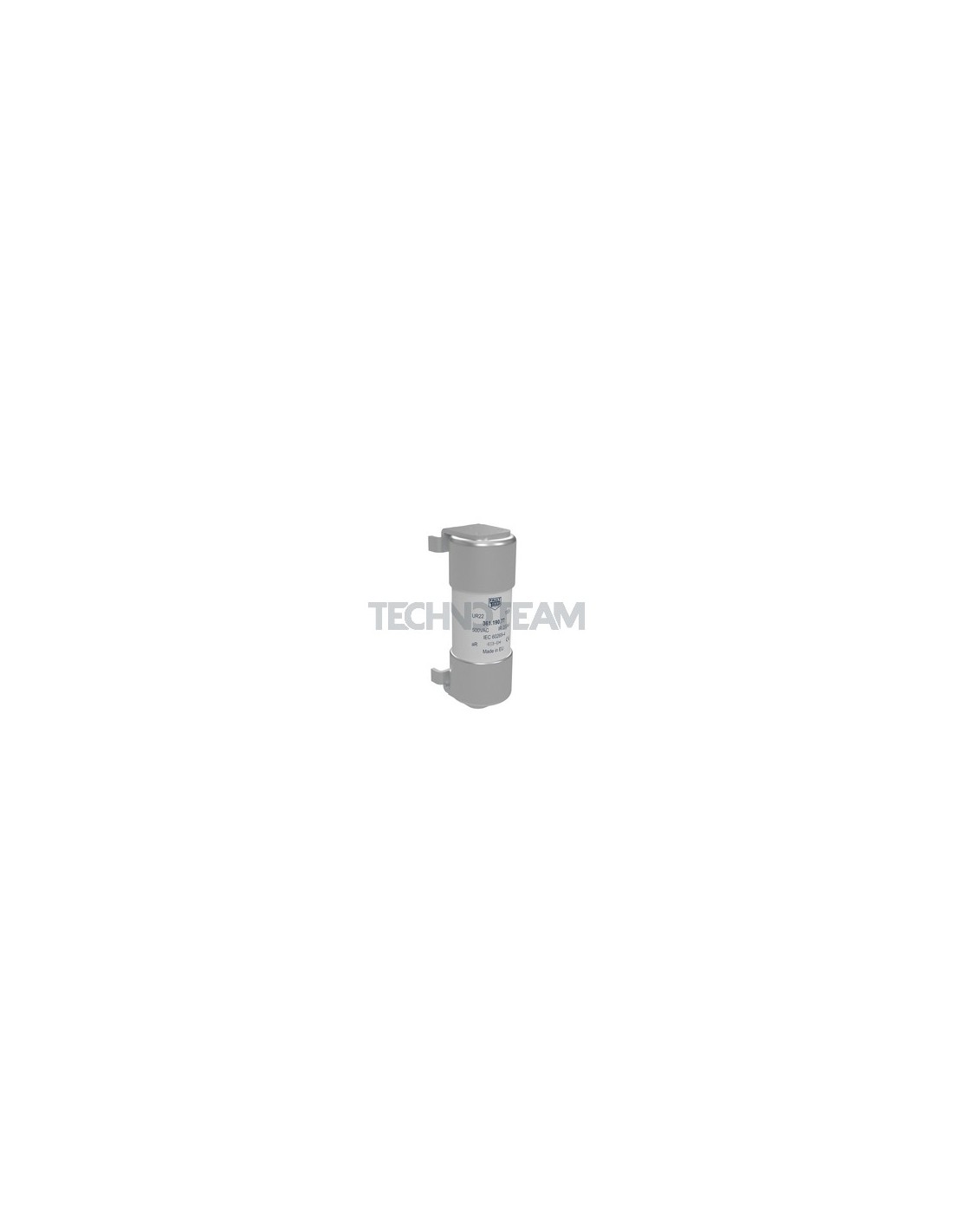

UR22 - Fuse 500V AC 22x58 fixing on pcb 135A

    UR22 - Fuse 500V AC 22x58 fixing on pcb 135A

    FAULTRAP
    114.304.22.0.0
    Product available on request

    Product Request:


    UR22 - Fuse 500V AC 22x58 fixing on pcb 135A

    UR22 - Fuse 500V AC 22x58 fixing on pcb 135A

    do not include special characters

    * Required fields



    Class
    aR
    Rated current In (A)
    135
    Rated Voltage Un AC (V)
    500
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    500
    Format
    Cylindrical
    Dimension
    22x58mm
    Pre-arcing I2t value (A2s)
    3640
    Total I2t value (A2s)
    17800
    Homologations
    IEC
    Power loss (W)
    28,6
    Catalog name
    UR22
