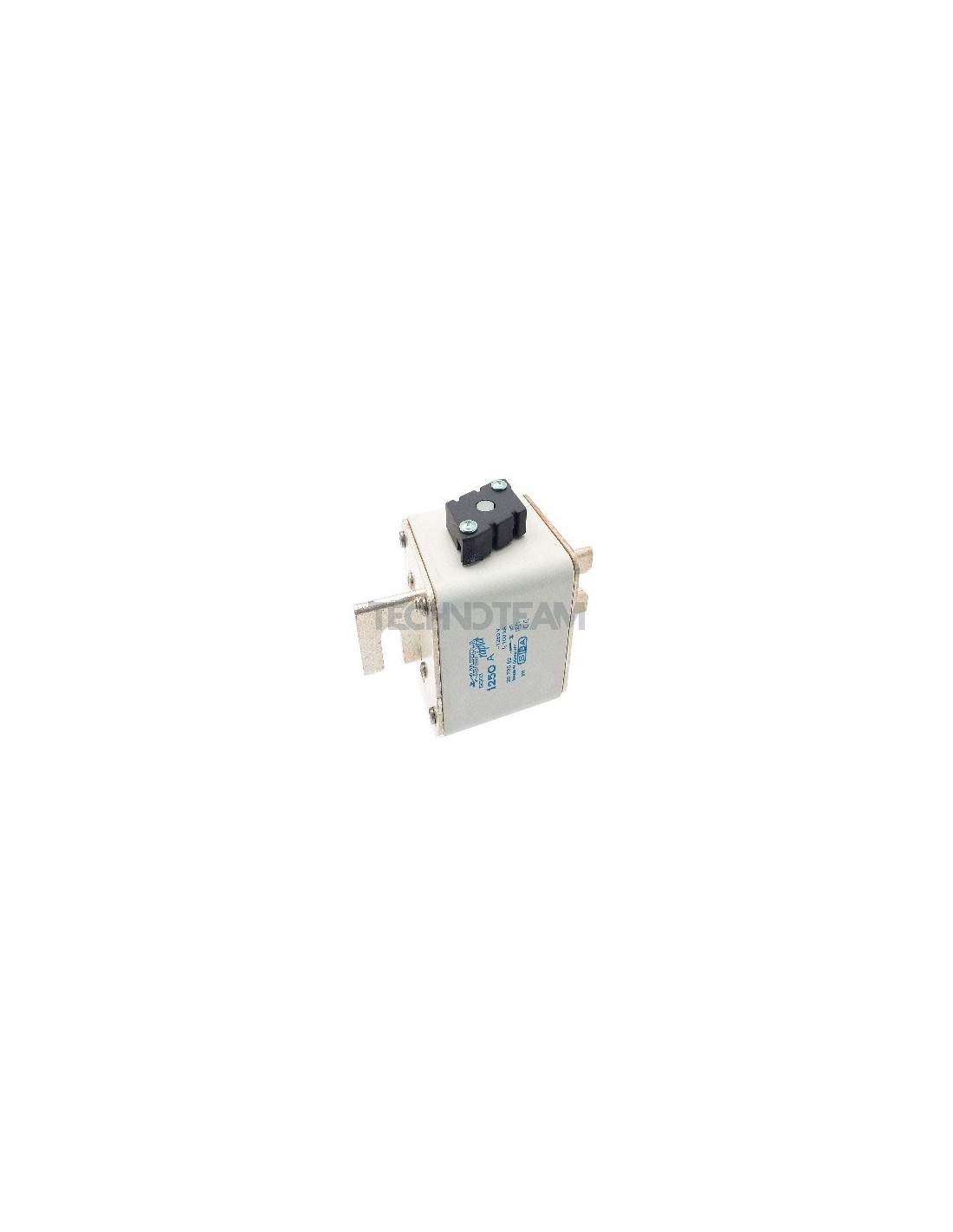

Fuse SQB3 110mm 1250V lateral switch adapter body 82mm 1250A

    Fuse SQB3 110mm 1250V lateral switch adapter body 82mm 1250A

    SIBA
    2073552.1250.0
    Product available on request

    Product Request:

    Fuse SQB3 110mm 1250V lateral switch adapter body 82mm 1250A

    Fuse SQB3 110mm 1250V lateral switch adapter body 82mm 1250A

    do not include special characters

    * Required fields



    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    1250
    Rated Voltage Un AC (V)
    1250
    Rated break.capacity I1 AC (A)
    100000
    Voltage of total I2t test
    1000
    Weight (g)
    1380
    Format
    Screw fixing
    Dimension
    SQB3-110mm
    Pre-arcing I2t value (A2s)
    678000
    Total I2t value (A2s)
    2700000
    Homologations
    IEC
    Power loss (W)
    109

    Alternatives

    Fuse SQB3 110mm aR 800V top switch adapter 1250A
      Available
      Ultrarapid fuses aR - gR

      Fuse SQB3 110mm aR 800V top switch adapter 1250A

      SIBA SIBA
      2073432.1250.0
      Class
      aR
      Rated current In (A)
      1250
      Rated Voltage Un AC (V)
      800
      Rated break.capacity I1 AC (A)
      100000
      Voltage of total I2t test
      900
      Format
      Screw fixing
      Dimension
      SQB3-110mm
      Pre-arcing I2t value (A2s)
      652000
      Total I2t value (A2s)
      3300000
      Homologations
      IEC & UL
      Power loss (W)
      198

      Product available on request

      Fuse SQB3 110mm aR 800V top indicator 1250A
        Available
        Ultrarapid fuses aR - gR

        Fuse SQB3 110mm aR 800V top indicator 1250A

        SIBA SIBA
        2073332.1250.0
        Class
        aR
        Rated current In (A)
        1250
        Rated Voltage Un AC (V)
        800
        Rated break.capacity I1 AC (A)
        100000
        Voltage of total I2t test
        900
        Format
        Screw fixing
        Dimension
        SQB3-110mm
        Pre-arcing I2t value (A2s)
        652000
        Total I2t value (A2s)
        3300000
        Homologations
        UL
        Power loss (W)
        198

        Product available on request

        Fuse SQB3 110mm aR 800V lateral switch adapter 1250A
          Available
          Ultrarapid fuses aR - gR

          Fuse SQB3 110mm aR 800V lateral switch adapter 1250A

          SIBA SIBA
          2073532.1250.0
          Class
          aR
          Rated current In (A)
          1250
          Rated Voltage Un AC (V)
          800
          Rated break.capacity I1 AC (A)
          100000
          Voltage of total I2t test
          900
          Format
          Screw fixing
          Dimension
          SQB3-110mm
          Pre-arcing I2t value (A2s)
          652000
          Total I2t value (A2s)
          3300000
          Homologations
          UL
          Power loss (W)
          198
          €333.77

          Accessories

          Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V
            Available
            for Bolted fuses

            Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V

            2132302.0.0
            Rated current In (A)
            1250
            Rated Voltage Un AC (V)
            1400
            Homologations
            IEC & UL
            Fuses format
            Screw fixing
            Fuses dimension
            SQB1 SQB2 SQB3
            Number of phase
            1
            Distance (mm)
            110
            Max power dissipation (W)
            110
            €194.10
