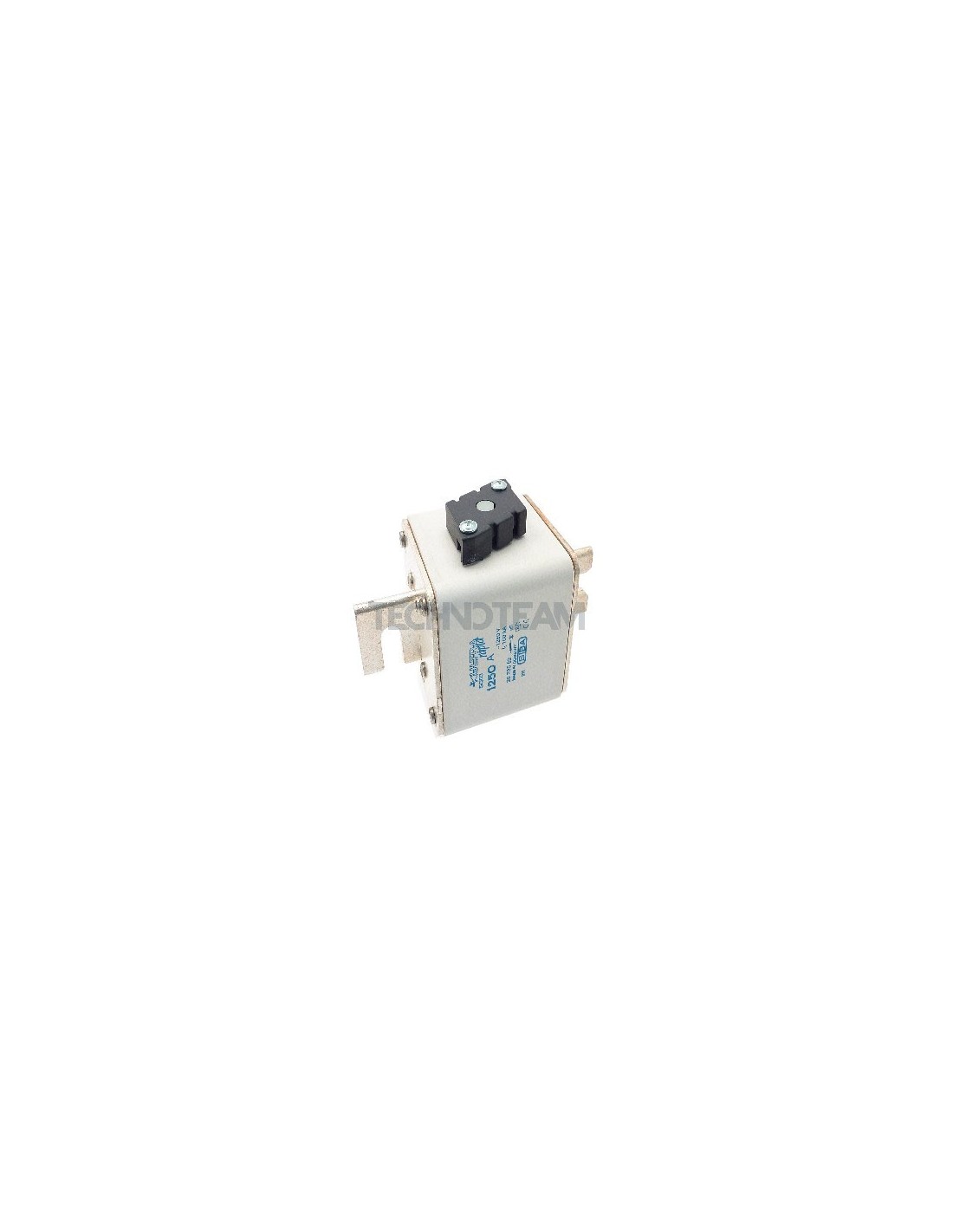

Fuse SQB3 110mm 1000V lateral switch adapter body 82mm 1400A

    Fuse SQB3 110mm 1000V lateral switch adapter body 82mm 1400A

    SIBA
    2073552.1400.0
    Product available on request

    Product Request:

    Fuse SQB3 110mm 1000V lateral switch adapter body 82mm 1400A

    Fuse SQB3 110mm 1000V lateral switch adapter body 82mm 1400A

    do not include special characters

    * Required fields



    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    1400
    Rated Voltage Un AC (V)
    1000
    Rated break.capacity I1 AC (A)
    100000
    Voltage of total I2t test
    1000
    Weight (g)
    1380
    Format
    Screw fixing
    Dimension
    SQB3-110mm
    Pre-arcing I2t value (A2s)
    452000
    Total I2t value (A2s)
    2560000
    Homologations
    IEC
    Power loss (W)
    275

    Alternatives

    Fuse SQB3 110mm aR 800V lateral switch adapter 1400A
      Available
      Ultrarapid fuses aR - gR

      Fuse SQB3 110mm aR 800V lateral switch adapter 1400A

      SIBA SIBA
      2073532.1400.0
      Class
      aR
      Rated current In (A)
      1400
      Rated Voltage Un AC (V)
      800
      Rated break.capacity I1 AC (A)
      100000
      Voltage of total I2t test
      900
      Format
      Screw fixing
      Dimension
      SQB3-110mm
      Pre-arcing I2t value (A2s)
      852000
      Total I2t value (A2s)
      3900000
      Homologations
      UL
      Power loss (W)
      210

      Product available on request

      Fuse SQB3 110mm aR 800V top switch adapter 1400A
        Available
        Ultrarapid fuses aR - gR

        Fuse SQB3 110mm aR 800V top switch adapter 1400A

        SIBA SIBA
        2073432.1400.0
        Class
        aR
        Rated current In (A)
        1400
        Rated Voltage Un AC (V)
        800
        Rated break.capacity I1 AC (A)
        100000
        Voltage of total I2t test
        900
        Format
        Screw fixing
        Dimension
        SQB3-110mm
        Pre-arcing I2t value (A2s)
        852000
        Total I2t value (A2s)
        3900000
        Homologations
        UL
        Power loss (W)
        210

        Product available on request

        Accessories

        Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V
          Available
          for Bolted fuses

          Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V

          2132302.0.0
          Rated current In (A)
          1250
          Rated Voltage Un AC (V)
          1400
          Homologations
          IEC & UL
          Fuses format
          Screw fixing
          Fuses dimension
          SQB1 SQB2 SQB3
          Number of phase
          1
          Distance (mm)
          110
          Max power dissipation (W)
          110
          €194.10
