List of products by brand MULTI

Current sensor through hole type DC 1A

    Current sensor through hole type DC 1A

    DCZCT-20M.0.0
    MULTI
    Available
    Inside diameter (mm)
    20
    Housing
    Through hole type
    Dimensions (mm)
    43 x 56 x 17
    Operation temperature
    -20 C +80 C 80%RH without condensation
    Output
    1VDC
    Power Supply Voltage (V)
    5
    Accuracy
    1%
    Applicable current DC (A)
    1
    Type of output connection
    H JST

    Product available on request


    Catalog
    Datasheet
    Current sensor through hole type DC 200mA

      Current sensor through hole type DC 200mA

      DCZCT-20MH.0.0
      MULTI
      Available
      Inside diameter (mm)
      20
      Housing
      Through hole type
      Dimensions (mm)
      43 x 56 x 17
      Operation temperature
      -20 C +80 C 80%RH without condensation
      Output
      1VDC
      Power Supply Voltage (V)
      5
      Accuracy
      1%
      Applicable current DC (A)
      0,200
      Type of output connection
      H JST

      Product available on request


      Catalog
      Datasheet
      Current sensor through hole type DC 100mA

        Current sensor through hole type DC 100mA

        DCZCT-45NK.0.0
        MULTI
        Available
        Inside diameter (mm)
        45
        Housing
        Through hole type
        Dimensions (mm)
        170 x 143 x 47
        Operation temperature
        -20 C +80 C 80%RH without condensation
        Output
        2,5VDC
        Power Supply Voltage (V)
        24
        Accuracy
        1%
        Applicable current DC (A)
        0,100
        Type of output connection
        15cm 4-wires cable

        Product available on request


        Catalog
        Datasheet
        Current sensor through hole type leakageAC,DC 0-3A

          Current sensor through hole type leakageAC,DC 0-3A

          DCZCT-45SH.0.0
          MULTI
          Available
          Inside diameter (mm)
          45
          Housing
          Through hole type
          Dimensions (mm)
          170 x 143 x 47
          Operation temperature
          -20 C +80 C 80%RH without condensation
          Output
          2,5V
          Applicable current AC (A)
          3
          Max capable current (A)
          10
          Power Supply Voltage (V)
          15
          Accuracy
          0.20% F.S.
          Applicable current DC (A)
          3
          Type of output connection
          Molex 43025-0600

          Product available on request


          Catalog
          Datasheet
          Current sensor through hole type DC 100mA

            Current sensor through hole type DC 100mA

            DCZCT-60NK.0.0
            MULTI
            Available
            Inside diameter (mm)
            60
            Housing
            Through hole type
            Dimensions (mm)
            120 x 157 x 51
            Operation temperature
            -20 C +80 C 80%RH without condensation
            Output
            2,5VDC
            Power Supply Voltage (V)
            24
            Accuracy
            1%
            Applicable current DC (A)
            0,100
            Type of output connection
            15cm 4-wires cable

            Product available on request


            Catalog
            Datasheet
            Clamp tester digital AC/DC 1000A

              Clamp tester digital AC/DC 1000A

              FAD-100.0.0
              MULTI
              Available
              Type
              Digital
              Inside diameter (mm)
              200
              Operation temperature
              0 C +40 C 85%RH without condensation
              Applicable current AC (A)
              1000
              Power Supply Voltage (V)
              12
              Applicable current DC (A)
              1000

              Product available on request


              Catalog
              Datasheet

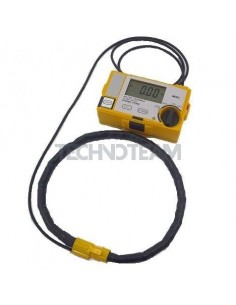

              Flexible AC/DC current tester 0.001A-2500A

                Flexible AC/DC current tester 0.001A-2500A

                FCM-100.0.0
                MULTI
                Available
                Homologations
                IEC
                Type
                Digital
                Inside diameter (mm)
                200
                Dimensions (mm)
                159 x 105 x 53
                Operation temperature
                0 C +40 C 85%RH without condensation
                Applicable current AC (A)
                2500
                Power Supply Voltage (V)
                1,5V (AA, UM-3) 6
                Leakage current AC (mA)
                1
                Accuracy
                3%
                Applicable current DC (A)
                2500

                Product available on request


                Catalog
                Datasheet
                Current sensor through hole type AC,DC,pulsed 25A

                  Current sensor through hole type AC,DC,pulsed 25A

                  FDACT-1-25.0.0
                  MULTI
                  Available
                  Housing
                  Through hole type for PCB
                  Dimensions (mm)
                  16,2 x 21,7 x 23
                  Output
                  0,375V - 4,625V
                  Frequency f (kHz)
                  300
                  Applicable current AC (A)
                  25
                  Max capable current (A)
                  85
                  Power Supply Voltage (V)
                  5
                  Accuracy
                  1,5%
                  Applicable current DC (A)
                  25
                  Type of output connection
                  Pin 3,35mm

                  Product available on request


                  Catalog
                  Datasheet

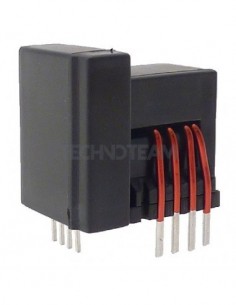

                  Current sensor through hole type AC,DC,pulsed 50A

                    Current sensor through hole type AC,DC,pulsed 50A

                    FDACT-1-50.0.0
                    MULTI
                    Available
                    Housing
                    Through hole type for PCB
                    Dimensions (mm)
                    16,2 x 21,7 x 23
                    Output
                    0,375V - 4,625V
                    Frequency f (kHz)
                    300
                    Applicable current AC (A)
                    50
                    Max capable current (A)
                    150
                    Power Supply Voltage (V)
                    5
                    Accuracy
                    1,5%
                    Applicable current DC (A)
                    50
                    Type of output connection
                    Pin 3,35mm

                    Product available on request


                    Catalog
                    Datasheet
                    Current sensor through hole type AC,DC,pulsed 6A

                      Current sensor through hole type AC,DC,pulsed 6A

                      FDACT-1-6.0.0
                      MULTI
                      Available
                      Housing
                      Through hole type for PCB
                      Dimensions (mm)
                      16,2 x 21,7 x 23
                      Output
                      0,375V - 4,625V
                      Frequency f (kHz)
                      300
                      Applicable current AC (A)
                      6
                      Max capable current (A)
                      20
                      Power Supply Voltage (V)
                      5
                      Accuracy
                      1,5%
                      Applicable current DC (A)
                      6
                      Type of output connection
                      Pin 3,35mm

                      Product available on request


                      Catalog
                      Datasheet
                      Current sensor through hole type leakage AC,DC 100mA

                        Current sensor through hole type leakage AC,DC 100mA

                        FDAZCT-11L-0.1.0.0
                        MULTI
                        Available
                        Inside diameter (mm)
                        11
                        Housing
                        Through hole type for PCB
                        Dimensions (mm)
                        30 x 30 x 19,2
                        Operation temperature
                        -20 C +85 C 85%RH without condensation
                        Output
                        5V
                        Frequency f (kHz)
                        18
                        Applicable current AC (A)
                        0,100
                        Max capable current (A)
                        0,200
                        Power Supply Voltage (V)
                        15
                        Accuracy
                        1%
                        Applicable current DC (A)
                        0,100
                        Type of output connection
                        Pin 4,8mm

                        Product available on request


                        Catalog
                        Datasheet
                        Current sensor through hole type leakage AC,DC 200mA

                          Current sensor through hole type leakage AC,DC 200mA

                          FDAZCT-11L-0.2.0.0
                          MULTI
                          Available
                          Inside diameter (mm)
                          11
                          Housing
                          Through hole type for PCB
                          Dimensions (mm)
                          30 x 30 x 19,2
                          Operation temperature
                          -20 C +85 C 85%RH without condensation
                          Output
                          5V
                          Frequency f (kHz)
                          18
                          Applicable current AC (A)
                          0,200
                          Max capable current (A)
                          0,400
                          Power Supply Voltage (V)
                          15
                          Accuracy
                          1%
                          Applicable current DC (A)
                          0,200
                          Type of output connection
                          Pin 4,8mm

                          Product available on request


                          Catalog
                          Datasheet
                          Current sensor through hole type leakage AC,DC 400mA

                            Current sensor through hole type leakage AC,DC 400mA

                            FDAZCT-11L-0.4.0.0
                            MULTI
                            Available
                            Inside diameter (mm)
                            11
                            Housing
                            Through hole type for PCB
                            Dimensions (mm)
                            30 x 30 x 19,2
                            Operation temperature
                            -20 C +85 C 85%RH without condensation
                            Output
                            5V
                            Frequency f (kHz)
                            18
                            Applicable current AC (A)
                            0,400
                            Max capable current (A)
                            0,800
                            Power Supply Voltage (V)
                            15
                            Accuracy
                            1%
                            Applicable current DC (A)
                            0,400
                            Type of output connection
                            Pin 4,8mm

                            Product available on request


                            Catalog
                            Datasheet
                            Current sensor through hole type leakage AC,DC/pulsate 300mA

                              Current sensor through hole type leakage AC,DC/pulsate 300mA

                              FDAZCT-20L-0.3.0.0
                              MULTI
                              Available
                              Inside diameter (mm)
                              20
                              Housing
                              Through hole type for PCB
                              Dimensions (mm)
                              45 x 44,7 x 20,7
                              Operation temperature
                              -40 C +105 C 85%RH without condensation
                              Output
                              1,2V
                              Applicable current AC (A)
                              0,3
                              Max capable current (A)
                              0,5
                              Power Supply Voltage (V)
                              5
                              Leakage current AC (mA)
                              0,001
                              Accuracy
                              1,9%
                              Applicable current DC (A)
                              0,3
                              Type of output connection
                              Pin 3,6mm

                              Product available on request


                              Catalog
                              Datasheet
                              Current sensor through hole type leakage AC,DC/pulsate 600mA

                                Current sensor through hole type leakage AC,DC/pulsate 600mA

                                FDAZCT-20L-0.6.0.0
                                MULTI
                                Available
                                Inside diameter (mm)
                                20
                                Housing
                                Through hole type for PCB
                                Dimensions (mm)
                                45 x 44,7 x 20,7
                                Operation temperature
                                -40 C +105 C 85%RH without condensation
                                Output
                                1,2V
                                Applicable current AC (A)
                                0,6
                                Max capable current (A)
                                0,85
                                Power Supply Voltage (V)
                                5
                                Leakage current AC (mA)
                                0,001
                                Accuracy
                                1,9%
                                Applicable current DC (A)
                                0,6
                                Type of output connection
                                Pin 3,6mm

                                Product available on request


                                Catalog
                                Datasheet
                                Current sensor through hole type leakage AC,DC/pulsate 300mA

                                  Current sensor through hole type leakage AC,DC/pulsate 300mA

                                  FDAZCT-20LSP-0.3.0.0
                                  MULTI
                                  Available
                                  Inside diameter (mm)
                                  20,3
                                  Housing
                                  Through hole type for PCB
                                  Dimensions (mm)
                                  44,8 x 44,6 x 17,9
                                  Operation temperature
                                  -40 C +105 C 85%RH without condensation
                                  Output
                                  1,2V
                                  Applicable current AC (A)
                                  0,3
                                  Max capable current (A)
                                  0,5
                                  Power Supply Voltage (V)
                                  5
                                  Accuracy
                                  1,5%
                                  Applicable current DC (A)
                                  0,3
                                  Type of output connection
                                  Pin 3,6mm

                                  Product available on request


                                  Catalog
                                  Datasheet

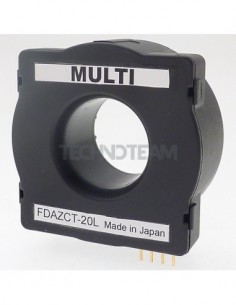

                                  Current sensor through hole type leakage AC,DC/pulsate 600mA

                                    Current sensor through hole type leakage AC,DC/pulsate 600mA

                                    FDAZCT-20LSP-0.6.0.0
                                    MULTI
                                    Available
                                    Inside diameter (mm)
                                    20,3
                                    Housing
                                    Through hole type for PCB
                                    Dimensions (mm)
                                    44,8 x 44,6 x 17,9
                                    Operation temperature
                                    -40 C +105 C 85%RH without condensation
                                    Output
                                    1,2V
                                    Applicable current AC (A)
                                    0,6
                                    Max capable current (A)
                                    0,85
                                    Power Supply Voltage (V)
                                    5
                                    Accuracy
                                    1,5%
                                    Applicable current DC (A)
                                    0,6
                                    Type of output connection
                                    Pin 3,6mm

                                    Product available on request


                                    Catalog
                                    Datasheet

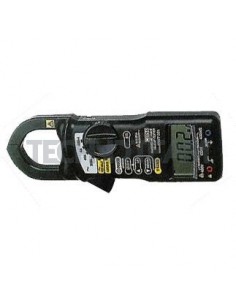

                                    Digital harmonics clamp tester AC 0.1mA-300A

                                      Digital harmonics clamp tester AC 0.1mA-300A

                                      HWT-300.0.0
                                      MULTI
                                      Available
                                      Type
                                      Digital
                                      Inside diameter (mm)
                                      40
                                      Dimensions (mm)
                                      68 207 33
                                      Operation temperature
                                      0 C +40 C 80%RH without condensation
                                      Applicable current AC (A)
                                      300
                                      Power Supply Voltage (V)
                                      1,5V (AM-4, LR03, AAA) 3 or AC adapter (optional)
                                      Leakage current AC (mA)
                                      0,1

                                      Product available on request


                                      Catalog
                                      Datasheet
                                      Digital harmonics clamp tester AC 0.1mA-300A

                                        Digital harmonics clamp tester AC 0.1mA-300A

                                        HWT-301.0.0
                                        MULTI
                                        Available
                                        Rated Voltage Un AC (V)
                                        450
                                        Type
                                        Digital
                                        Inside diameter (mm)
                                        40
                                        Dimensions (mm)
                                        70 223 34
                                        Operation temperature
                                        0 C +40 C 80%RH without condensation
                                        Applicable current AC (A)
                                        300
                                        Power Supply Voltage (V)
                                        1,5V (AM-4, LR03 o AAA) 3
                                        Leakage current AC (mA)
                                        0,1
                                        Resistance (Mohm)
                                        0,004

                                        Product available on request


                                        Catalog
                                        Datasheet
                                        Clamp type current sensor AC 20A / DC 30A

                                          Clamp type current sensor AC 20A / DC 30A

                                          LAD-20.0.0
                                          MULTI
                                          Available
                                          Inside diameter (mm)
                                          17
                                          Housing
                                          Split type
                                          Dimensions (mm)
                                          54 x 192 x 25
                                          Operation temperature
                                          0 C +50 C 15-85%RH without condensation
                                          Output
                                          100mV/A
                                          Frequency f (kHz)
                                          100
                                          Applicable current AC (A)
                                          20
                                          Power Supply Voltage (V)
                                          9
                                          Accuracy
                                          1%
                                          Applicable current DC (A)
                                          30

                                          Product available on request


                                          Catalog
                                          Datasheet

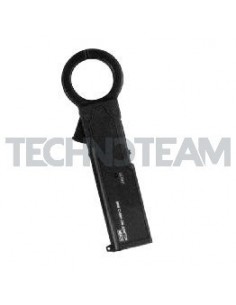

                                          Clamp type current sensor DC 200A

                                            Clamp type current sensor DC 200A

                                            LAD-240.0.0
                                            MULTI
                                            Available
                                            Inside diameter (mm)
                                            30
                                            Housing
                                            Split type
                                            Dimensions (mm)
                                            44 x 146 x 21
                                            Operation temperature
                                            0 C +40 C 80%RH without condensation
                                            Output
                                            200mVDC
                                            Power Supply Voltage (V)
                                            LR-44 2
                                            Accuracy
                                            2.5%+0.5% F.S.
                                            Applicable current DC (A)
                                            200
                                            Type of output connection
                                            Banana plug 1,2m

                                            Product available on request


                                            Catalog
                                            Datasheet

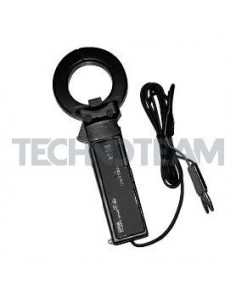

                                            Clamp type current sensor AC,DC 1000A

                                              Clamp type current sensor AC,DC 1000A

                                              LAD-250.0.0
                                              MULTI
                                              Available
                                              Inside diameter (mm)
                                              40
                                              Housing
                                              Split type
                                              Dimensions (mm)
                                              69 x 175 x 23
                                              Operation temperature
                                              0 C +40 C 80%RH without condensation
                                              Output
                                              100mV F.S.
                                              Applicable current AC (A)
                                              1000
                                              Power Supply Voltage (V)
                                              LR-44 2
                                              Accuracy
                                              3%
                                              Applicable current DC (A)
                                              1000
                                              Type of output connection
                                              Banana plug 1,2m

                                              Product available on request


                                              Catalog
                                              Datasheet
                                              Voltage detector AC 500V

                                                Voltage detector AC 500V

                                                LV-1.0.0
                                                MULTI
                                                Available
                                                Rated Voltage Un AC (V)
                                                500
                                                Homologations
                                                IEC
                                                Type
                                                Optical/acoustic signaling
                                                Dimensions (mm)
                                                129 x 20 x 19,5
                                                Operation temperature
                                                0 C +40 C
                                                Power Supply Voltage (V)
                                                1,55V (LR-44) 2

                                                Product available on request


                                                Catalog
                                                Datasheet
                                                Product added to wishlist
                                                Product added to compare.
