List of products by brand FAULTRAP

UR22 - Fuse 690V AC 22x58 cylindrical 25A

    UR22 - Fuse 690V AC 22x58 cylindrical 25A

    399.213.34.0.0
    FAULTRAP
    Available
    Class
    aR
    Rated current In (A)
    25
    Rated Voltage Un AC (V)
    550
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    550
    Format
    Cylindrical
    Dimension
    22x58mm
    Pre-arcing I2t value (A2s)
    33
    Total I2t value (A2s)
    147
    Homologations
    IEC & UL
    Power loss (W)
    7,6

    Product available on request


    Catalog
    Datasheet
    UR22 - Fuse 690V AC 22x58 fixing 80mm 16A

      UR22 - Fuse 690V AC 22x58 fixing 80mm 16A

      481.114.32.0.0
      FAULTRAP
      Available
      Class
      aR
      Rated current In (A)
      16
      Rated Voltage Un AC (V)
      690
      Rated break.capacity I1 AC (A)
      200000
      Voltage of total I2t test
      690
      Format
      Screw fixing
      Dimension
      22x58mm
      Pre-arcing I2t value (A2s)
      12,5
      Total I2t value (A2s)
      56
      Homologations
      IEC
      Power loss (W)
      5,1

      Product available on request


      Catalog
      Datasheet
      UR22 - Fuse 690V AC 22x58 cylindrical 80A

        UR22 - Fuse 690V AC 22x58 cylindrical 80A

        487.974.34.0.0
        FAULTRAP
        Available
        Class
        aR
        Rated current In (A)
        80
        Rated Voltage Un AC (V)
        550
        Rated break.capacity I1 AC (A)
        200000
        Voltage of total I2t test
        550
        Format
        Cylindrical
        Dimension
        22x58mm
        Pre-arcing I2t value (A2s)
        1055
        Total I2t value (A2s)
        4620
        Homologations
        IEC & UL
        Power loss (W)
        16,3

        Product available on request


        Catalog
        Datasheet

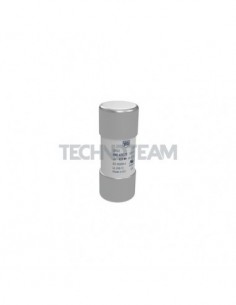

        UR22 - Fuse 500V AC 22x58 cylindrical 125A

          UR22 - Fuse 500V AC 22x58 cylindrical 125A

          926.959.14.0.0
          FAULTRAP
          Available
          Class
          aR
          Rated current In (A)
          125
          Rated Voltage Un AC (V)
          500
          Rated break.capacity I1 AC (A)
          200000
          Voltage of total I2t test
          550
          Format
          Cylindrical
          Dimension
          22x58mm
          Pre-arcing I2t value (A2s)
          3100
          Total I2t value (A2s)
          15000
          Homologations
          IEC & UL
          Power loss (W)
          26

          Product available on request


          Catalog
          Datasheet
          NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 100A

            NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 100A

            146.054.81.0.0
            FAULTRAP
            Available
            Class
            aR
            Rated current In (A)
            100
            Rated Voltage Un AC (V)
            690
            Rated break.capacity I1 AC (A)
            200000
            Voltage of total I2t test
            700
            Format
            Screw fixing
            Dimension
            000-80mm
            Pre-arcing I2t value (A2s)
            1340
            Total I2t value (A2s)
            5000
            Homologations
            IEC & UL
            Power loss (W)
            19
            Rated Voltage Un DC (V)
            700
            Rated break.capacity I1 DC (A)
            30000
            Time costant L/R (ms)
            2

            Product available on request

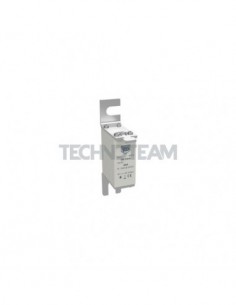

            NR2B - Fuse DIN00 80mm aR 690VAC with ind. lug 400A

              NR2B - Fuse DIN00 80mm aR 690VAC with ind. lug 400A

              152.430.74.0.0
              FAULTRAP
              Available
              Class
              aR
              Rated current In (A)
              400
              Rated Voltage Un AC (V)
              690
              Rated break.capacity I1 AC (A)
              200000
              Voltage of total I2t test
              690
              Format
              Screw fixing
              Dimension
              000-80mm
              Pre-arcing I2t value (A2s)
              33600
              Total I2t value (A2s)
              252000
              Homologations
              IEC & UL
              Power loss (W)
              89
              Time costant L/R (ms)
              2

              Product available on request


              NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 40A

                NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 40A

                177.747.74.0.0
                FAULTRAP
                Available
                Class
                aR
                Rated current In (A)
                40
                Rated Voltage Un AC (V)
                690
                Rated break.capacity I1 AC (A)
                200000
                Voltage of total I2t test
                700
                Format
                Screw fixing
                Dimension
                000-80mm
                Pre-arcing I2t value (A2s)
                230
                Total I2t value (A2s)
                840
                Homologations
                IEC & UL
                Power loss (W)
                7.2
                Rated Voltage Un DC (V)
                700
                Rated break.capacity I1 DC (A)
                30000
                Time costant L/R (ms)
                2

                Product available on request


                NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 25A

                  NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 25A

                  180.375.44.0.0
                  FAULTRAP
                  Available
                  Class
                  aR
                  Rated current In (A)
                  25
                  Rated Voltage Un AC (V)
                  690
                  Rated break.capacity I1 AC (A)
                  200000
                  Voltage of total I2t test
                  700
                  Format
                  Screw fixing
                  Dimension
                  000-80mm
                  Pre-arcing I2t value (A2s)
                  55
                  Total I2t value (A2s)
                  200
                  Homologations
                  IEC
                  Power loss (W)
                  4.6
                  Rated Voltage Un DC (V)
                  700
                  Rated break.capacity I1 DC (A)
                  30000
                  Time costant L/R (ms)
                  2

                  Product available on request


                  Catalog
                  Datasheet
                  NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 160A

                    NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 160A

                    193.430.72.0.0
                    FAULTRAP
                    Available
                    Class
                    aR
                    Rated current In (A)
                    160
                    Rated Voltage Un AC (V)
                    690
                    Rated break.capacity I1 AC (A)
                    200000
                    Voltage of total I2t test
                    700
                    Format
                    Screw fixing
                    Dimension
                    000-80mm
                    Pre-arcing I2t value (A2s)
                    3020
                    Total I2t value (A2s)
                    11100
                    Homologations
                    IEC
                    Power loss (W)
                    37.5
                    Rated Voltage Un DC (V)
                    700
                    Rated break.capacity I1 DC (A)
                    30000
                    Time costant L/R (ms)
                    2

                    Product available on request


                    Catalog
                    Datasheet
                    NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 40A

                      NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 40A

                      214.646.89.0.0
                      FAULTRAP
                      Available
                      Class
                      aR
                      Rated current In (A)
                      40
                      Rated Voltage Un AC (V)
                      690
                      Rated break.capacity I1 AC (A)
                      200000
                      Voltage of total I2t test
                      700
                      Format
                      Screw fixing
                      Dimension
                      000-80mm
                      Pre-arcing I2t value (A2s)
                      230
                      Total I2t value (A2s)
                      840
                      Homologations
                      IEC
                      Power loss (W)
                      7.2
                      Rated Voltage Un DC (V)
                      700
                      Rated break.capacity I1 DC (A)
                      30000
                      Time costant L/R (ms)
                      2

                      Product available on request


                      Catalog
                      Datasheet
                      NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 80A

                        NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 80A

                        245.542.07.0.0
                        FAULTRAP
                        Available
                        Class
                        aR
                        Rated current In (A)
                        80
                        Rated Voltage Un AC (V)
                        690
                        Rated break.capacity I1 AC (A)
                        200000
                        Voltage of total I2t test
                        700
                        Format
                        Screw fixing
                        Dimension
                        000-80mm
                        Pre-arcing I2t value (A2s)
                        750
                        Total I2t value (A2s)
                        2800
                        Homologations
                        IEC & UL
                        Power loss (W)
                        17
                        Rated Voltage Un DC (V)
                        700
                        Rated break.capacity I1 DC (A)
                        30000
                        Time costant L/R (ms)
                        2

                        Product available on request


                        NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 40A

                          NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 40A

                          302.935.93.0.0
                          FAULTRAP
                          Available
                          Class
                          aR
                          Rated current In (A)
                          40
                          Rated Voltage Un AC (V)
                          690
                          Rated break.capacity I1 AC (A)
                          200000
                          Voltage of total I2t test
                          700
                          Format
                          Screw fixing
                          Dimension
                          000-80mm
                          Pre-arcing I2t value (A2s)
                          230
                          Total I2t value (A2s)
                          840
                          Homologations
                          IEC & UL
                          Power loss (W)
                          7.2
                          Rated Voltage Un DC (V)
                          700
                          Rated break.capacity I1 DC (A)
                          30000
                          Time costant L/R (ms)
                          2

                          Product available on request


                          NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 63A

                            NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 63A

                            329.443.55.0.0
                            FAULTRAP
                            Available
                            Class
                            aR
                            Rated current In (A)
                            63
                            Rated Voltage Un AC (V)
                            690
                            Rated break.capacity I1 AC (A)
                            200000
                            Voltage of total I2t test
                            700
                            Format
                            Screw fixing
                            Dimension
                            000-80mm
                            Pre-arcing I2t value (A2s)
                            520
                            Total I2t value (A2s)
                            1900
                            Homologations
                            IEC & UL
                            Power loss (W)
                            9.5
                            Rated Voltage Un DC (V)
                            700
                            Rated break.capacity I1 DC (A)
                            30000
                            Time costant L/R (ms)
                            2

                            Product available on request


                            NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 25A

                              NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 25A

                              352.831.93.0.0
                              FAULTRAP
                              Available
                              Class
                              aR
                              Rated current In (A)
                              25
                              Rated Voltage Un AC (V)
                              690
                              Rated break.capacity I1 AC (A)
                              200000
                              Voltage of total I2t test
                              700
                              Format
                              Screw fixing
                              Dimension
                              000-80mm
                              Pre-arcing I2t value (A2s)
                              55
                              Total I2t value (A2s)
                              200
                              Homologations
                              IEC & UL
                              Power loss (W)
                              4.6
                              Rated Voltage Un DC (V)
                              700
                              Rated break.capacity I1 DC (A)
                              30000
                              Time costant L/R (ms)
                              2

                              Product available on request


                              NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 160A

                                NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 160A

                                382.074.88.0.0
                                FAULTRAP
                                Available
                                Class
                                aR
                                Rated current In (A)
                                160
                                Rated Voltage Un AC (V)
                                690
                                Rated break.capacity I1 AC (A)
                                200000
                                Voltage of total I2t test
                                700
                                Format
                                Screw fixing
                                Dimension
                                000-80mm
                                Pre-arcing I2t value (A2s)
                                3020
                                Total I2t value (A2s)
                                11100
                                Homologations
                                IEC & UL
                                Power loss (W)
                                37.5
                                Rated Voltage Un DC (V)
                                700
                                Rated break.capacity I1 DC (A)
                                30000
                                Time costant L/R (ms)
                                2

                                Product available on request


                                L101 - Fuse 600V gS class L format 800A

                                  L101 - Fuse 600V gS class L format 800A

                                  440.243.30.0.0
                                  FAULTRAP
                                  Available
                                  Class
                                  gR
                                  Rated current In (A)
                                  800
                                  Rated Voltage Un AC (V)
                                  600
                                  Rated break.capacity I1 AC (A)
                                  120
                                  Voltage of total I2t test
                                  600
                                  Format
                                  Screw fixing
                                  Dimension
                                  Class L
                                  Pre-arcing I2t value (A2s)
                                  1900000
                                  Total I2t value (A2s)
                                  10500000
                                  Homologations
                                  IEC & UL
                                  Power loss (W)
                                  78

                                  Product available on request


                                  Datasheet
                                  NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 200A

                                    NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 200A

                                    456.865.11.0.0
                                    FAULTRAP
                                    Available
                                    Class
                                    aR
                                    Rated current In (A)
                                    200
                                    Rated Voltage Un AC (V)
                                    690
                                    Rated break.capacity I1 AC (A)
                                    200000
                                    Voltage of total I2t test
                                    700
                                    Format
                                    Screw fixing
                                    Dimension
                                    000-80mm
                                    Pre-arcing I2t value (A2s)
                                    5370
                                    Total I2t value (A2s)
                                    19600
                                    Homologations
                                    IEC & UL
                                    Power loss (W)
                                    48.5
                                    Rated Voltage Un DC (V)
                                    700
                                    Rated break.capacity I1 DC (A)
                                    30000
                                    Time costant L/R (ms)
                                    2

                                    Product available on request


                                    NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 200A

                                      NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 200A

                                      456.980.23.0.0
                                      FAULTRAP
                                      Available
                                      Class
                                      aR
                                      Rated current In (A)
                                      200
                                      Rated Voltage Un AC (V)
                                      690
                                      Rated break.capacity I1 AC (A)
                                      200000
                                      Voltage of total I2t test
                                      700
                                      Format
                                      Screw fixing
                                      Dimension
                                      000-80mm
                                      Pre-arcing I2t value (A2s)
                                      5370
                                      Total I2t value (A2s)
                                      19600
                                      Homologations
                                      IEC
                                      Power loss (W)
                                      48.5
                                      Rated Voltage Un DC (V)
                                      700
                                      Rated break.capacity I1 DC (A)
                                      30000
                                      Time costant L/R (ms)
                                      2

                                      Product available on request


                                      Catalog
                                      Datasheet
                                      NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 100A

                                        NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 100A

                                        471.346.95.0.0
                                        FAULTRAP
                                        Available
                                        Class
                                        aR
                                        Rated current In (A)
                                        100
                                        Rated Voltage Un AC (V)
                                        690
                                        Rated break.capacity I1 AC (A)
                                        200000
                                        Voltage of total I2t test
                                        700
                                        Format
                                        Screw fixing
                                        Dimension
                                        000-80mm
                                        Pre-arcing I2t value (A2s)
                                        1340
                                        Total I2t value (A2s)
                                        5000
                                        Homologations
                                        IEC
                                        Power loss (W)
                                        19
                                        Rated Voltage Un DC (V)
                                        700
                                        Rated break.capacity I1 DC (A)
                                        30000
                                        Time costant L/R (ms)
                                        2

                                        Product available on request


                                        Catalog
                                        Datasheet
                                        NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 125A

                                          NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 125A

                                          969.839.51.0.0
                                          FAULTRAP
                                          Available
                                          Class
                                          aR
                                          Rated current In (A)
                                          125
                                          Rated Voltage Un AC (V)
                                          690
                                          Rated break.capacity I1 AC (A)
                                          200000
                                          Voltage of total I2t test
                                          700
                                          Format
                                          Screw fixing
                                          Dimension
                                          000-80mm
                                          Pre-arcing I2t value (A2s)
                                          2100
                                          Total I2t value (A2s)
                                          7700
                                          Homologations
                                          IEC
                                          Power loss (W)
                                          27.5
                                          Rated Voltage Un DC (V)
                                          700
                                          Rated break.capacity I1 DC (A)
                                          30000
                                          Time costant L/R (ms)
                                          2

                                          Product available on request


                                          Catalog
                                          Datasheet
                                          NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 250A

                                            NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 250A

                                            977.316.49.0.0
                                            FAULTRAP
                                            Available
                                            Class
                                            aR
                                            Rated current In (A)
                                            250
                                            Rated Voltage Un AC (V)
                                            690
                                            Rated break.capacity I1 AC (A)
                                            200000
                                            Voltage of total I2t test
                                            700
                                            Format
                                            Screw fixing
                                            Dimension
                                            000-80mm
                                            Pre-arcing I2t value (A2s)
                                            10150
                                            Total I2t value (A2s)
                                            37100
                                            Homologations
                                            IEC
                                            Power loss (W)
                                            57
                                            Rated Voltage Un DC (V)
                                            700
                                            Rated break.capacity I1 DC (A)
                                            30000
                                            Time costant L/R (ms)
                                            2

                                            Product available on request


                                            Catalog
                                            Datasheet
                                            DC22 - Fuse 1000VDC aBat 22x65mm 50A

                                              DC22 - Fuse 1000VDC aBat 22x65mm 50A

                                              128.721.89.0.0
                                              FAULTRAP
                                              Available
                                              Class
                                              aBat
                                              Rated current In (A)
                                              50
                                              Format
                                              Cylindrical
                                              Dimension
                                              22x65mm
                                              Pre-arcing I2t value (A2s)
                                              380
                                              Total I2t value (A2s)
                                              1710
                                              Homologations
                                              IEC & UL
                                              Power loss (W)
                                              11.8
                                              Rated Voltage Un DC (V)
                                              1000
                                              Rated break.capacity I1 DC (A)
                                              100000

                                              Product available on request


                                              Catalog
                                              Datasheet
                                              NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 180A

                                                NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 180A

                                                143.745.86.0.0
                                                FAULTRAP
                                                Available
                                                Class
                                                aR
                                                Rated current In (A)
                                                180
                                                Rated Voltage Un AC (V)
                                                690
                                                Rated break.capacity I1 AC (A)
                                                200000
                                                Voltage of total I2t test
                                                700
                                                Format
                                                Screw fixing
                                                Dimension
                                                000-80mm
                                                Pre-arcing I2t value (A2s)
                                                4120
                                                Total I2t value (A2s)
                                                15100
                                                Homologations
                                                IEC
                                                Power loss (W)
                                                42.5
                                                Rated Voltage Un DC (V)
                                                700
                                                Rated break.capacity I1 DC (A)
                                                30000
                                                Time costant L/R (ms)
                                                2

                                                Product available on request


                                                Catalog
                                                Datasheet

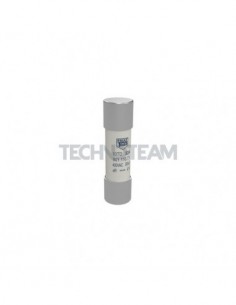

                                                10TD - Fuse 10x38 500VAC aM/aR 1A

                                                  10TD - Fuse 10x38 500VAC aM/aR 1A

                                                  154.406.51.0.0
                                                  FAULTRAP
                                                  Available
                                                  Class
                                                  aM-aR
                                                  Rated current In (A)
                                                  1
                                                  Rated Voltage Un AC (V)
                                                  500
                                                  Rated break.capacity I1 AC (A)
                                                  50000
                                                  Voltage of total I2t test
                                                  500
                                                  Format
                                                  Cylindrical
                                                  Dimension
                                                  10x38mm
                                                  Pre-arcing I2t value (A2s)
                                                  9.6
                                                  Total I2t value (A2s)
                                                  22
                                                  Homologations
                                                  IEC & UL

                                                  Product available on request


                                                  Catalog
                                                  Product added to wishlist
                                                  Product added to compare.
